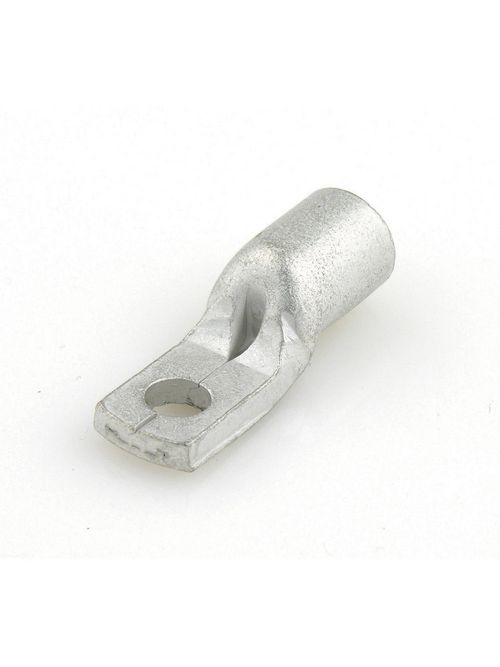

TB MCCNT16M5 METRIC CU NARROW TNG 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$354.87/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # MCCNT16M5
North Coast Part # 1889753

Features

  • Manufactured from seamless copper tubing that conforms to BS2781 with heavy-duty wall thickness, achieving maximum conductivity with low resistance.
  • Electro Tin-Plated for Corrosion Resistance. Chamfered Barrels Provide Ease of Strand Entry and Inspection hole facilitates full insertion of the conductor.
  • Cable Area Clearly Identified on Lug.
  • #N/A

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121405 Cable or wire lug
  • IGCC: 4532 Cable or wire lug
  • Brand Name: Color-Keyed
  • Type: Standard Barrel - Narrow Tongue
  • Cable Size: 16mm2
  • Stud Size: M5
  • Number Of Holes: 1
  • Voltage Rating: Max 35kV
  • Insulation: None
  • Material: Copper

European Specifications (ETIM)

  • ETIM: EC001051 Tube cable lug for copper conductors
  • Connecting angle: Straight
  • Slender flange model: Y
  • Insulated: N
  • With sight-hole: Y
  • Material: Copper
  • Surface protection: Tinned
  • Number of fixing holes: 1

Packaging

  • Inner Quantity: 100
  • Inner Dimensions (inches): 4x4x3
  • Outer Quantity: 1000
  • Outer Dimensions (inches): 12.25x6.25x4
  • Weight Uom: 11.88 lbs. per 1000

Overview

GTiN 00786210958798
Voltage 35 kV
Type Standard Barrel - Narrow Tongue
Material Copper
Stud Size 0.1969 in
Number of Holes 1 Hole
Cable Size 16 mm2
Family Brand Name Color-Keyed
Insulated? No
Box Quantity 1000
Product UPC 78621095879
