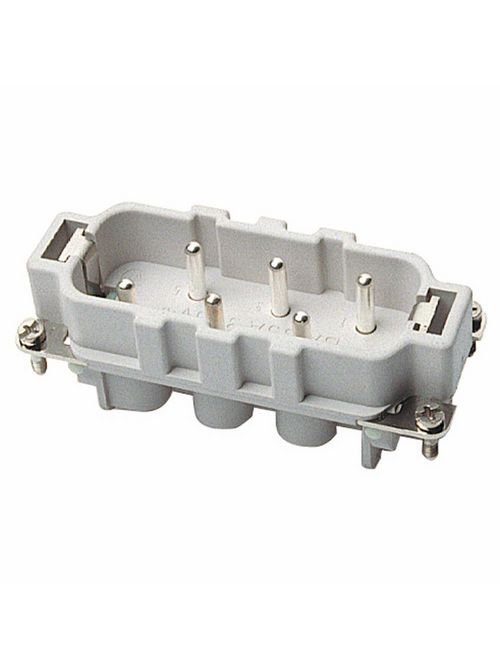

Pos-E-Kon MS206C Male Insert Screw
Product image thumbnail 0
Product image thumbnail 1
$60.60/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # MS206C
North Coast Part # 217525

Specifications

Ordering

  • EAN: 5415022475302
  • Customs Tariff Number: 8536694030

Dimensions

  • Product Net Weight: .2 lb90.703 g

Container Information

  • Package Level 2 Units: 5 piece
  • Package Level 2 Width: 2.1 in53 mm
  • Package Level 2 Height: 5.9 in150 mm
  • Package Level 2 Depth / Length: 7.3 in185 mm

Additional Information

  • Application: For use with C series
  • Brand / Label: Pos-E-Kon
  • Current Rating: 35 A
  • Material: Glass-filled Thermoplastic
  • Number of Batteries: 0
  • Product Name: RACK AND PANEL CONNECTOR
  • Product Type: Terminal Inserts-Male
  • UPC: 786210791197
  • Voltage Rating: 600 V AC
  • Wire Size: 20-10 AWG

Classifications

  • ETIM 6: EC000438 - Contact insert for industrial connectors
  • ETIM 7: EC000438 - Contact insert for rectangular connectors
  • UNSPSC: 39121410
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4550 >> Component terminal block

Overview

UPC 78621079119
GTiN 05415022475302
Type Male, Rectangular
Material Glass-Filled Thermoplastic Body, Copper Contact
Conductor Size 20-10 AWG
Applications For use with C series
Wire Size 20-10 AWG
Temperature Rating -40 to 125 C
Family Brand Name Pos-E-Kon
Number of Poles 6 Pole
Sub Brand Pos-E-Kon
Voltage 600 Volt
Current 35 A
Amperage 35 Amp
