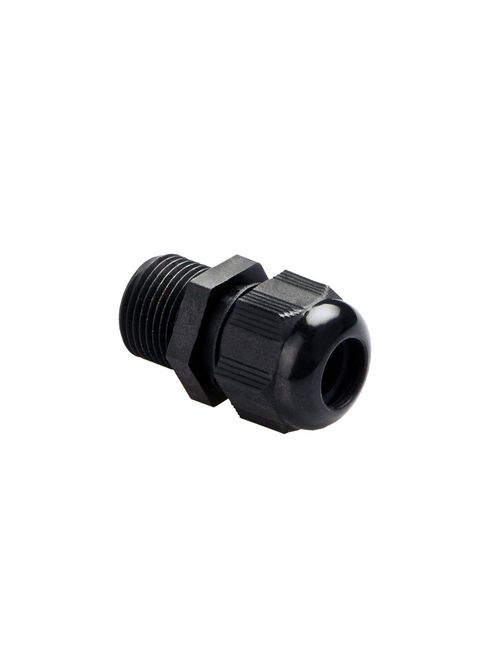

TB NCG-1001B NYLON CG 1 NPT 12.0-20
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$7.32/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # NCG-1001B
North Coast Part # 1685763

Features

  • Low profile compact cable glands
  • Wide cable clamping range
  • Good corrosion resistance

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121431 Cable gland connector
  • IGCC: 4601 Cable gland connector
  • Brand Name: T&B
  • Type: Non Armoured Cable Gland
  • Application: General purpose, Panel building, Light fixture and housings
  • Standard: UL514B, CSA, RoHS, WEEE, LVD
  • Size: 1 Inch NPT
  • Conductor Range: 12 to 20 Millimeters
  • Material: Nylon
  • Color: Black
  • NEMA Rating: NEMA 4
  • Temperature Rating: -20 to +100 Degrees C

European Specifications (ETIM)

  • ETIM: EC000441 Cable screw gland
  • Thread type: NPT
  • Nominal thread size inch/gas pipe thread: 1 inch
  • Thread length: 18mm
  • Suitable for cable diameter: 12 - 20mm
  • Material: Plastic
  • Material quality: Polyamide (PA)
  • Halogen free: Y
  • Degree of protection (IP): IP68
  • Colour: Black
  • Model: Straight
  • Operating temperature: -20-+100°C

Packaging

  • Inner Quantity: 5
  • Inner Dimensions (inches): 7.09x3.54x3.54
  • Outer Quantity: 20
  • Outer Dimensions (inches): 3.94x15.75x11.02
  • Weight Uom: 0.01 lbs. Each

Overview

UPC 78621015217
Item Long Description Non Armoured Cable Gland, Thread Size 1 Inch NPT, Cable Range 12 to 20mm, Thread Length 18mm, Nylon, Black
Color Black
Operating Temperature -20 To 100 C
Material Nylon
Thread Length 18 mm
Temperature Rating -20 to +100 C
Family Brand Name Thomas & Betts
NEMA 4
Box Quantity 20
IP Rating IP68
Thread Type NPT
GTiN 00786210152172
Size 1 Inch NPT
Type Non Armoured Cable Gland
Applications General purpose, Panel building, Light fixture and housings
