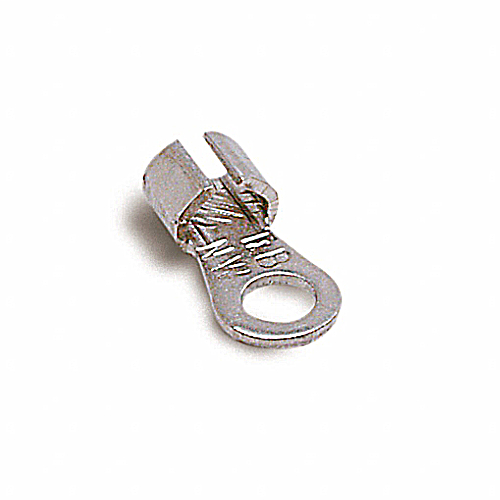

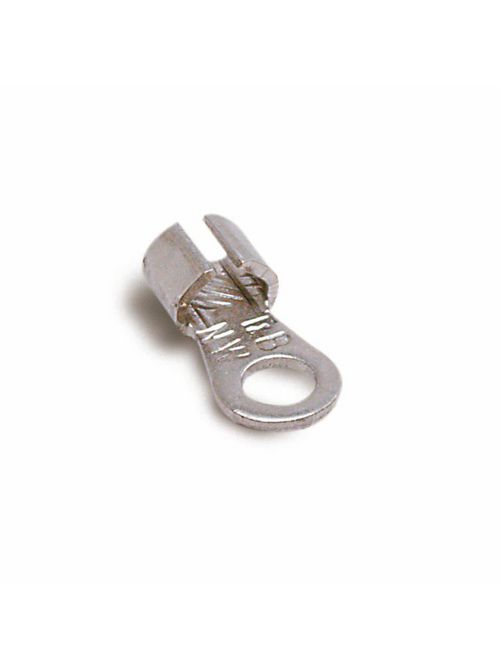

Thomas & Betts NW10-8 #8 Bolt Hole 12-10 AWG Wire Range Non-Insulated High Temperature Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$312.78/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # NW10-8
North Coast Part # 15929

Features

  • For easily installed, permanent terminations of solid, round, or stranded nichrome wires as used in toasters, heaters, etc.

General

  • Terminal Series: NW
  • Finish: Plain
  • Color: Metallic
  • Stud Size: #8
  • Wire Range: 12-10
  • Insulation Type: Non-Insulated - High Temperature
  • Material: Nickel Alloy

Dimension Information

  • M (inches): .51
  • A (inches): .66
  • Stock Thickness: .40
  • B (inches): .31
  • C (inches): .28

Specifications

  • Voltage Rating: 600V
  • Temperature Rating: 1200°F

Tooling

  • Recommended Tool: WT1377
  • Application Tools: WT1377

Packaging

  • Outer Package: 250
  • Order Multiple: 50
  • Package Width: 8.75
  • Package Height: 7.25
  • T&B Sold in UOM: Each
  • Package Length: 10.6
  • Package Type: Standard
  • T&B Weight Per UOM: 3.75 lbs. per 1000
  • Inner Package: 50

Application Support

Notes

  • Not available on Mylar Tape.

Certifications

  • RoHS Compliance: Yes

Overview

UPC 78621076983
Item Long Description Non-Insulated High-Temperature Ring Terminal, Length .66 Inches, Width .31 Inches, Bolt Hole #8, Wire Range #12-#10 AWG, 1200 Degree Fahrenheit Maximum, Nickel Alloy, Plain Finish
GTiN 05414363934349
Finish None
Color Metallic
Voltage 600 Volt
Type Short Sleeve
Material Nickel Alloy
Stud Size #8
Conductor Size 12-10 AWG
Wire Size 12-10 AWG
Temperature Rating 1200 degrees F
Family Brand Name Thomas & Betts
Sub Brand Sta-Kon
