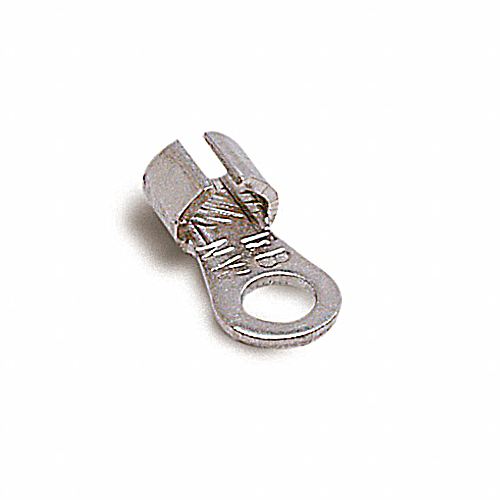

Thomas & Betts NW14-8 #8 Bolt Hole 16-14 AWG Wire Range Non-Insulated High Temperature Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$254.70/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # NW14-8
North Coast Part # 16181

Features

  • For easily installed, permanent terminations of solid, round, or stranded nichrome wires as used in toasters, heaters, etc.

General

  • Material: Nickel Alloy
  • Terminal Series: NW
  • Color: Metallic
  • Wire Range: 16-14
  • Finish: Plain
  • Insulation Type: Non-Insulated - High Temperature
  • Stud Size: #8

Dimension Information

  • B (inches): .31
  • Stock Thickness: .40
  • C (inches): .28
  • A (inches): .66
  • M (inches): .51

Specifications

  • Voltage Rating: 600V
  • Temperature Rating: 1200°F

Tooling

  • Application Tools: WT1377
  • Recommended Tool: WT1377

Packaging

  • Package Width: 8.8
  • Package Height: 7.3
  • T&B Weight Per UOM: 2.5 lbs. per 1000
  • Outer Package: 500
  • Package Type: Standard
  • Package Length: 10.4
  • Inner Package: 100
  • T&B Sold in UOM: Each
  • Order Multiple: 100

Application Support

Notes

  • Not available on Mylar Tape.

Certifications

  • RoHS Compliance: Yes

Overview

UPC 78621076979
Item Long Description Non-Insulated High-Temperature Ring Terminal, Length .66 Inches, Width .31 Inches, Bolt Hole #8, Wire Range #16-#14 AWG, 1200 Degree Fahrenheit Maximum, Nickel Alloy, Plain Finish
GTiN 05414363934325
Finish None
Color Metallic
Voltage 600 Volt
Type Non-Insulated Ring Terminal
Material Nickel Alloy
Wire Size 16-14 AWG
Temperature Rating 1200 degrees F
Family Brand Name Thomas & Betts
Stud Size #8
Conductor Size 16-14 AWG
Sub Brand Sta-Kon
