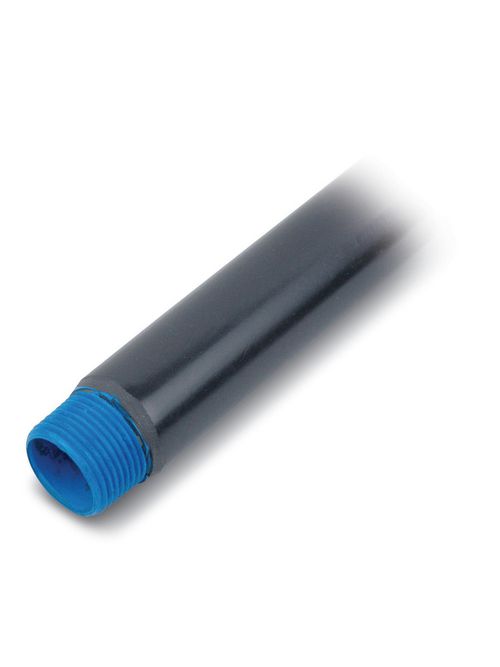

OC COND21/2SA-G PVC CTD COND 2-1/2I

Features

• A minimum .040 inch (40 mil) PVC coating on the exterior.
• A nominal .002 inch (2 mil) blue urethane on the interior.
• Color coded thread protectors on each end.
• Blue urethane coating over Hot-Dip Galvanized threads.

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39131706 Electrical conduit
• IGCC: 5535 Electrical conduit
• Brand Name: Ocal
• Type: Conduit-PVC Coated
• Special Features: Color-Coded Thread Protectors
• Application: Corrosion Protection for Electrical Systems
• Standard: UL E46453, CSA
• Trade Size: 2-1/2 Inches
• Outside Diameter: 2.96 Inch/75.00mm
• Inside Diameter: 2.49 Inch/63.20mm
• Length: 9.875 ft ; 3.01 m
• Material: Aluminum
• Wall Thickness: 0.23 Inch/5.91mm
• Color: Gray

European Specifications (ETIM)

• ETIM: EC001179 Protective metallic hose
• Nominal size in inch: 2 1/2 inch
• Outer diameter: 75.00mm
• Inner diameter: 73.00mm
• Material: Aluminium
• Surface protection: Untreated
• Sheathing material 2nd coating (exterior): PVC
• Colour: Grey
• Bending strength: Rigid

Packaging

• Inner Quantity: 10
• Outer Quantity: 170
• Outer Dimensions (inches): 120x18.5x9
• Weight Uom: 2 lbs. Each
