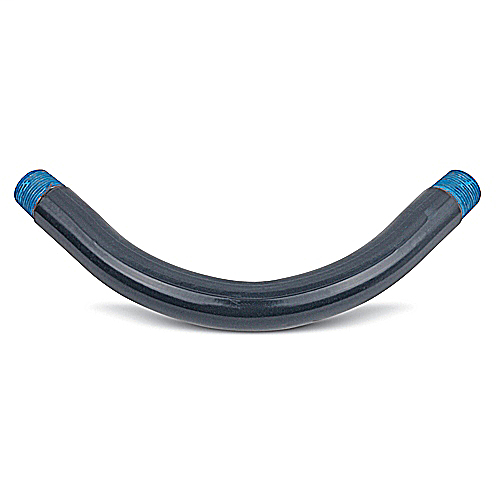

Ocal ELL1/2-G 1/2 Inch 90 Degree PVC Coated Steel Gray Elbow

Features

• A nominal .002 in. (2 mil) blue urethane on the interior.
• Color coded thread protectors on each end.
• A minimum .040 in. (40 mil) PVC coating on the exterior.
• Ocal-Blue standard radius elbows are factory bent to reduce the time and wasted materials that can result from field bending.

General

• Material: Steel
• Color: Dark Gray
• Finish: Hot-Dipped Galvanized
• Thread Protector Color: Black

Dimension Information

• Radius-R (inches): 4.00
• Offset-C (mm): 165.1
• Straight End-D (mm): 53.848
• Unbent Length (mm): 285.75
• Radius-R (mm): 101.6
• Degree of Bend: 90
• Offset-C (inches): 6.50
• Straight End-D (inches): 2.12
• Unbent Length (inches): 11.25
• Size (inches): 1/2
• Pipe Size (Metric Size Designator*): 16
• Offset-C (feet/inches): 6.50

Technical Information

Specifications

Packaging

• Outer Package: 30
• T&B Sold in UOM: Each
• Package Width: 8
• Package Length: 14.5
• Package Height: 8
• Inner Package: 1
• T&B Weight Per UOM: 0.85 lbs. Each

Application Support

Notes

• Metric size designator (ANSI C80. 1-1994)
• Dimensional values are of uncoated elbows.

Certifications

• RoHS Compliance: No
• CSA
• UL
