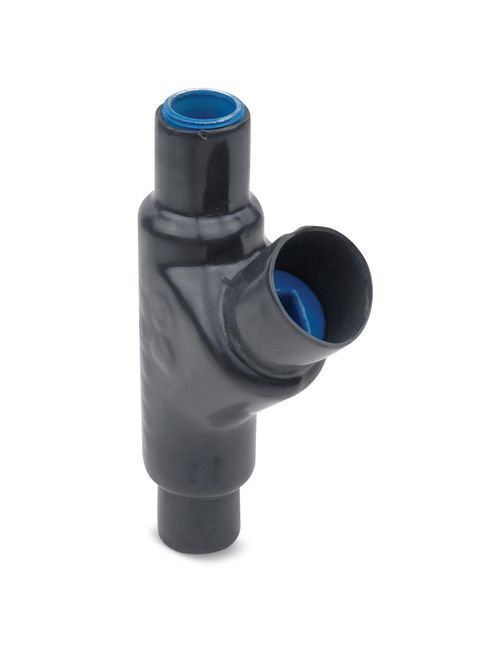

Ocal EYS31-G Ocal 1 Inch Gray Fitting
Product image thumbnail 0
Product image thumbnail 1
$134.92/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Ocal
Mfg Catalog # EYS31-G
North Coast Part # 17744

Features

  • All hubs have a minimum of five full threads, integral bushings to protect conductor insulation from damage, and large access openings for easier packing of sealing material.
  • Seals are approved to be used with Crouse HindsĀ® Sealing Compound and Fiber.

Application

  • Restricts the passage of gases, vapors and flames at atmospheric pressure and normal ambient temperatures

General

  • Finish: PVC Coated
  • Material: Ductile Iron
  • Trade Size (inches): 1
  • Color: Dark Gray

Dimension Information

  • Hub Size (inches): 1
  • Pipe Size (Metric Size Designator*): 27
  • Pipe Size (inches): 1
  • Dimension A (inches): 4.25
  • Dimension B (inches): 1.75
  • Turning Radius (inches): 1.59

Technical Information

Specifications

Packaging

  • Package Height: 8
  • Package Width: 8
  • Outer Package: 15
  • T&B Weight Per UOM: 1.69 lbs. Each
  • Package Length: 14
  • T&B Sold in UOM: Each

Application Support

Notes

  • Metric size designator (ANSI C80. 1-1994)
  • Dimensions are of uncoated fittings

Certifications


  • CSA
  • UL
  • RoHS Compliance: Yes

Overview

UPC 70450837392
GTiN 00704508373924
Finish PVC Coated
Color Gray
Type Female
Material Ductile Iron
Applications Restricts the Passage of Gases, Vapors and Flames at Atmospheric Pressure and Normal Ambient Temperatures
Trade Size 1 Inch
Family Brand Name Ocal
Blade Dimensions 1-3/4 in dia x 4-1/4 in L
Hub Size 1 in
Sub Brand Ocal
Size 1 in
