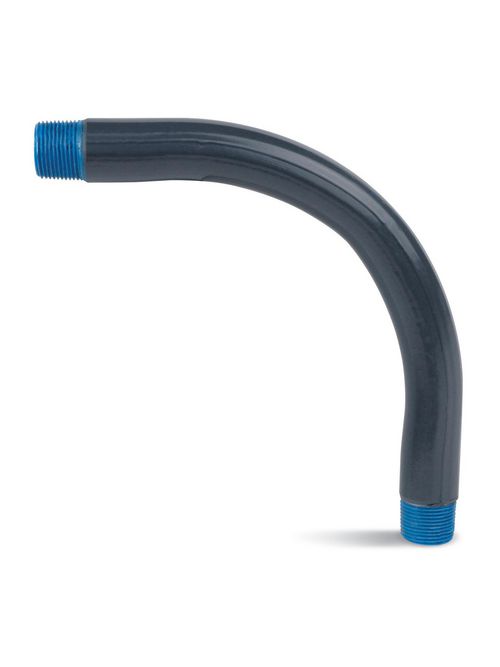

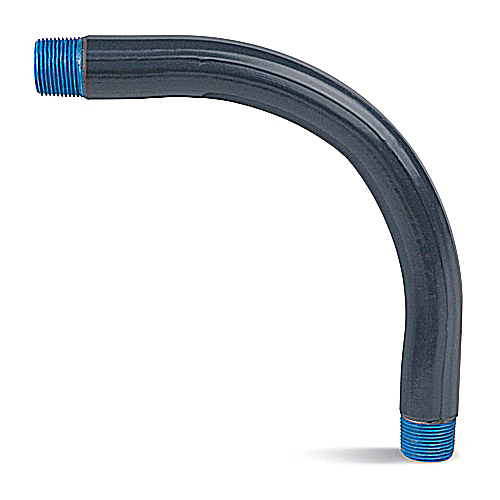

OC LRELL4X24-G PVC CTD ELB 90D 4IN

Features

• A minimum .040 inch (40 mil) PVC coating on the exterior.
• A nominal .002 inch (2 mil) blue urethane on the interior.
• Ocal-Blue large radius elbows are factory bent to reduce the time and wasted materials that can result from field bending.
• Color coded thread protectors on each end.

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39131717 Electrical conduit elbow
• IGCC: 5746 Electrical conduit elbow
• Brand Name: Ocal
• Type: Conduit Elbow - Large Radius
• Special Features: Color-Coded Thread Protectors for Easy Identification of Conduit Size
• Application: To Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting
• Standard: cULus E46453, CSA
• Material: Steel
• Color: Gray
• Finish: Hot-Dipped Galvanized
• Length: 59 in ; 1,498.6 mm
• Trade Size: 4 Inch/103mm
• Connection: 90 Degree Bend

European Specifications (ETIM)

• ETIM: EC001493 Bend for cable protection tubes
• Material: Metal
• Material quality: Steel
• Surface protection: Hot dip galvanized
• Colour: Other
• Model: Rigid
• Shape: Outer - and inner side plain
• Inner diameter: 103mm
• Angle of bow: 90°

Packaging

• Outer Quantity: 1
• Outer Dimensions (inches): 52x48x28
• Weight Uom: 48.65 lbs. Each
