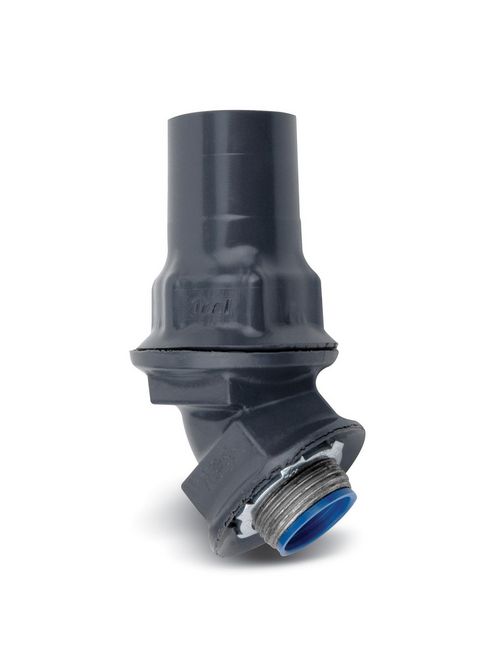

Ocal ST3/445-G 3/4 Inch Threaded Gray 45 Degrees PVC Coated Steel Sealtight Non-Insulated Liquidtight Connector
$95.72/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Ocal
Mfg Catalog # ST3/445-G
North Coast Part # 159553

Features

  • A minimum of .040 inch (40 mil) PVC coating is bonded to the exterior.
  • Double coated with a nominal .002 inch (2 mil) blue urethane on both the interior and exterior, before PVC coating is applied.
  • Pressure-sealing sleeves are designed to protect the connection.
  • PVC coated connectors are available in straight, 45 degree and 90 degree configurations
  • Ocal uses T&B Industrial Liquidtight fittings to insure quality installations.

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121420 Liquid tight connectors
  • IGCC: 4585 Liquid tight connectors
  • Brand Name: Ocal
  • Type: Liquidtight Conduit Fitting - 45 Degree
  • Special Features: Pressure-Sealing Sleeves Protect the Connection
  • Application: To Positively Bond Conduit to Box or Enclosure
  • Size: 3/4 Inch/21mm
  • Connection: 45 Degree
  • Material: Steel
  • Finish: PVC Coated
  • Color: Dark Gray
  • Environmental Conditions: Hazardous Locations

European Specifications (ETIM)

  • ETIM: EC001180 Screw connection for protective metallic hose
  • Nominal diameter: 21mm
  • Nominal size in inch: 3/4 inch
  • Model: 45°-elbow
  • Revolving thread: N
  • Construction type: External thread
  • Material housing: Steel
  • Surface protection: Other

Packaging

  • Outer Quantity: 50
  • Outer Dimensions (inches): 15.6x13.65x8.35
  • Weight Uom: 47.5 lbs. per 100

Overview

UPC 70450840760
GTiN 00704508407605
Finish PVC Coated
Size 3/4 Inch/21mm
Color Dark Gray
Type Liquidtight Conduit Fitting - 45 Degree
Diameter 21 mm
Material Steel
Applications To Positively Bond Conduit to Box or Enclosure
Construction Type External Thread
Connection Type 45 Degree
Family Brand Name Thomas & Betts
Housing Material Steel
Box Quantity 50
TC Connection 45 Degree
