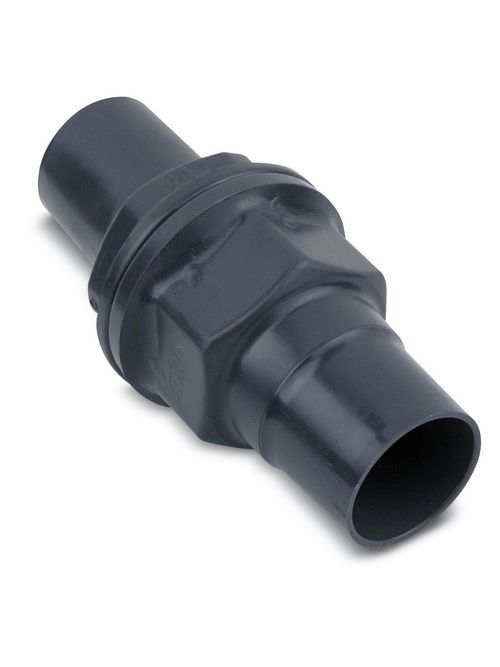

Ocal UNF405-G 1-1/4 Inch Ocal Gray Female Union
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Ocal
Mfg Catalog # UNF405-G
North Coast Part # 218086


  • Pressure sealing sleeves to protect the connection.
  • Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.


  • To connect conduit to conduit, or to provide a means for future modification of the conduit system.


  • Color: Dark Gray
  • Trade Size (inches): 1 1/4
  • Material: Steel
  • Finish: PVC Coated

Dimension Information

  • Overall Diameter (inches): 2 3/4
  • Overall Length (inches): 2 1/4

Technical Information



  • Package Height: 8
  • T&B Weight Per UOM: 202 lbs. per 100
  • Outer Package: 10
  • Package Width: 8
  • Package Length: 14.5
  • T&B Sold in UOM: Each

Application Support


  • Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
  • Dimensional values are of uncoated fittings.


  • RoHS Compliance: Yes


UPC 70450841311
Item Long Description PVC Coated Explosion and Dust-Ignition Proof UNF Female Union, Pipe Size 1-1/4 Inch/35 Metric, 3 Piece, for Hazardous and Non-hazardous Locations, Overall Length 2.25 Inch/57.15 Millimeters, Overall Diameter 2.75 Inch/69.85 Millimeters, Electrogalvanized Steel, Gray
GTiN 00704508413118
Length 2.25 in
Finish Duplex Coated
Color Gray
Type Type UNF
Material PVC
Applications To Connect Conduit to Conduit, or to Provide a Means for Future Modification of the Conduit System
Trade Size 1-1/4 Inch
Family Brand Name Ocal
Outside Diameter 2.75 in
Size 1-1/4 in
Standard CSA,UL 1203
Connection Type Female Threaded
Blade Dimensions 2-3/4 in OD x 2-1/4 in L
Sub Brand Ocal
