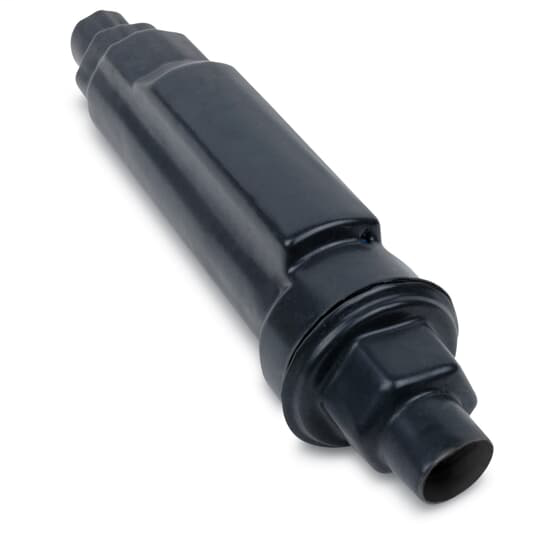

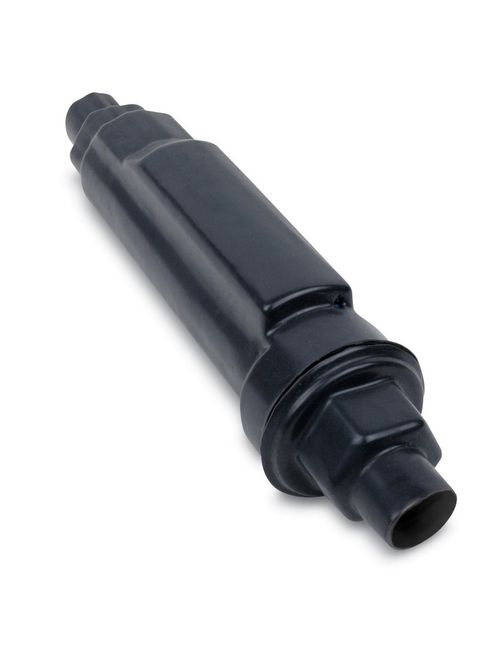

OC XJG28-G EXP CPLG 3/4IN, LENG 14I
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$856.09/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Ocal
Mfg Catalog # XJG28-G
North Coast Part # 599521

Specifications

Ordering

  • EAN: 0704508417550
  • Customs Tariff Number: 8547900030

Dimensions

  • Product Net Weight: 6.6 lb2.993 kg

Container Information

  • Package Level 2 Units: 5 piece
  • Package Level 2 Width: 14 in356 mm
  • Package Level 2 Height: 8 in203 mm
  • Package Level 2 Depth / Length: 16.5 in419 mm

Additional Information

  • Application: Allows for the Contraction and Expansion of a Conduit Run Without Reducing the Mechanical or Bonding Integrity of the Raceway
  • Brand / Label: Ocal
  • Color: Gray
  • Material: Iron
  • Nominal Size: 3/4 in21 mm
  • Number of Batteries: 0
  • Outside Diameter: 2.43 in61.72 mm
  • Product Name: INSULATED FITTING FOR CONDUIT
  • Product Type: Expansion Coupling
  • Special Functions: No Disassembly Necessary to Install
  • Standards: UL E23018
  • UPC: 704508417550

Classifications

  • ETIM 6: EC000939 - Coupler for installation tubes
  • ETIM 7: EC000939 - Coupler for installation tubes
  • UNSPSC: 39131707
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 5548 >> Electrical conduit coupling

Categories

Overview

UPC 70450841755
Item Long Description PVC Coated XJG Rigid Conduit Expansion Coupling with Internal Bonding Jumper, 3/4 Inch/21 Metric, Body is Malleable Iron with Zinc Plating, Internal Bonding Jumper is Tinned Copper Braid, Packing PTFE/Synthetic Fiber Material, 8 Inch/203.20 Millimeters Movement, Diameter 2.43 Inch/61.72 Millimeters, Length 14.00 Inch/355.60 Millimeters, Height 2.75 Inch/69.85 Millimeters, Gray
GTiN 00704508417550
Length 14 in
Color Gray
Type Expansion Coupling
Material Iron
Applications Allows for the Contraction and Expansion of a Conduit Run Without Reducing the Mechanical or Bonding Integrity of the Raceway
Trade Size 3/4 Inch
Family Brand Name Ocal
Outside Diameter 2.43 in
Standard UL E23018
