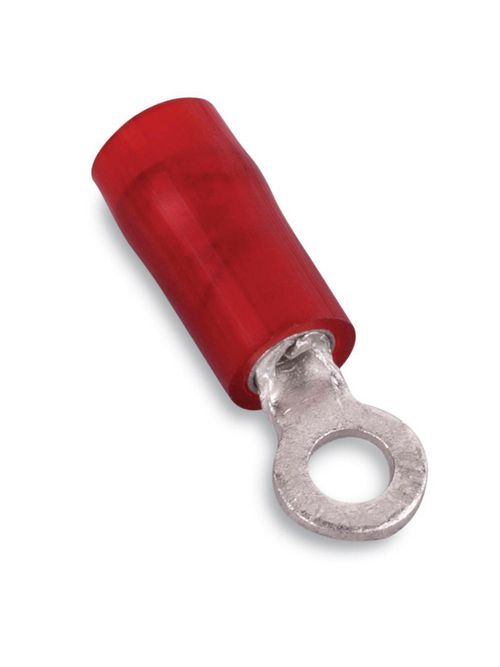

Thomas & Betts RA18-14 22 to 16 AWG 1/4 Inch Stud Red Electrotinned Copper Nylon Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$171.02/c (100 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # RA18-14
North Coast Part # 13720

Features

  • Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.

General

  • Wire Range: 22-16
  • Terminal Series: RA
  • Insulation Type: Insulated Nylon
  • Color: Red
  • Finish: Electro Tin-Plated
  • Material: Copper
  • Stud Size: 1/4

Dimension Information

  • A (inches): 1.07
  • Maximum Insulation (inches): .136
  • B (inches): .46
  • M (inches): .84
  • Stock Thickness: .03
  • C (inches): .31

Specifications

  • Flammability Rating: UL 94 V-2
  • Voltage Rating: 600V
  • Temperature Rating: 105°C

Tooling

  • Application Tools: WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A
  • Recommended Tool: WT145A

Packaging

  • Order Multiple: 100
  • T&B Weight Per UOM: 4.38 lbs. per 1000
  • Alternate Package Qty: RA713
  • Package Type: Standard
  • Inner Package: 100
  • Outer Package: 500
  • Package Width: 10
  • T&B Sold in UOM: Each
  • Package Length: 12.6
  • Package Height: 8.25

Application Support

Certifications

  • UL
  • CSA
  • RoHS Compliance: Yes

Overview

GTiN 05414363157526
Finish Tin Plated
Width 1.3 in
Color Red
Voltage 600 Volt
Type Long Sleeve
Thickness .03 in
Insulation Type Insulated Nylon
Material Copper
Stud Size 1/4 in
Terminal Type RA
Conductor Size 22-16 AWG
Height 3 Inch
Wire Size 22-16 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material Nylon
Flamability Class Rated V-2 Per UL94
Used With Round Conductors
Sub Brand Sta-Kon
Product UPC 78621080394
