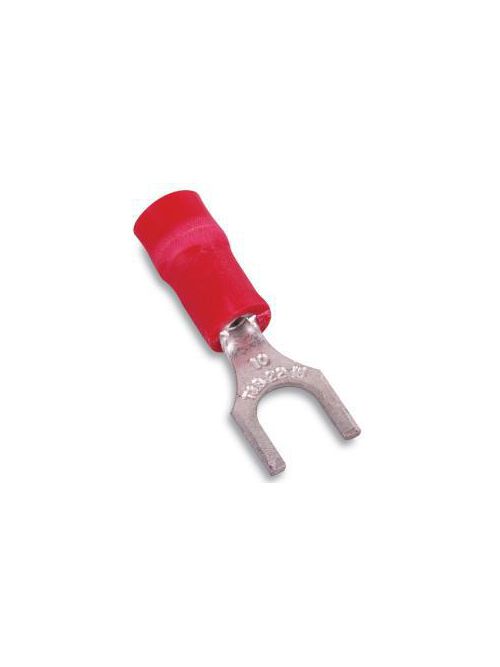

Thomas & Betts RA18-14F 22 to 16 AWG 1/4 Inch Stud Red Electrotinned Copper Nylon Insulated Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$155.33/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # RA18-14F
North Coast Part # 218108

Features

  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.

General

  • Wire Range: 22-16
  • Insulation Type: Insulated Nylon
  • Finish: Electro Tin-Plated
  • Material: Copper
  • Color: Red
  • Stud Size: 1/4
  • Terminal Series: RA

Dimension Information

  • C (inches): .31
  • M (inches): .70
  • B (inches): .44
  • A (inches): .95
  • Maximum Insulation (inches): .136
  • Stock Thickness: .03

Specifications

  • Flammability Rating: UL 94 V-2
  • Temperature Rating: 105°C
  • Voltage Rating: 600V

Tooling

  • Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003, WT145A
  • Recommended Tool: ERG4001

Packaging

  • Package Width: 10
  • T&B Sold in UOM: Each
  • Package Type: Standard
  • Inner Package: 100
  • Outer Package: 500
  • Alternate Package Qty: RA1163
  • Package Length: 12.5
  • Order Multiple: 100
  • T&B Weight Per UOM: 0.31 lbs. per 100
  • Package Height: 8.5

Application Support

Certifications


  • RoHS Compliance: Yes
  • UL
  • CSA

Overview

UPC 78621080395
GTiN 05414363934233
Finish Tin Plated
Width 1.3 in
Color Red
Voltage 600 Volt
Type Long Sleeve
Thickness .03 in
Insulation Type Insulated Nylon
Material Copper
Stud Size 1/4 in
Terminal Type RA
Conductor Size 22-16 AWG
Height 3 in
Wire Size 22-16 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material PVC
Flamability Class Rated V-2 Per UL94
Used With Round Conductors
Sub Brand Sta-Kon
