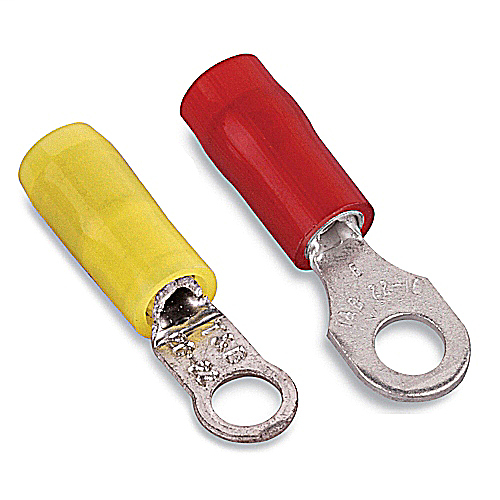

INS NYL RING TERM 22-16 BLT 3/8 RED

Features

• Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.

General

• Wire Range: 22-16
• Color: Red
• Material: Copper
• Stud Size: 3/8
• Insulation Type: Insulated Nylon
• Terminal Series: RA
• Finish: Electro Tin-Plated

Dimension Information

• C (inches): .35
• A (inches): 1.20
• B (inches): .53
• M (inches): .90
• Stock Thickness: .03
• Maximum Insulation (inches): .136

Specifications

• Temperature Rating: 105°C
• Voltage Rating: 600V
• Flammability Rating: UL 94 V-2

Tooling

• Recommended Tool: ERG4001
• Application Tools: WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A

Packaging

• Order Multiple: 100
• Package Width: 10.3
• Inner Package: 100
• Package Type: Standard
• Package Height: 8
• Outer Package: 500
• Package Length: 12.3
• T&B Sold in UOM: Each
• T&B Weight Per UOM: 3.13 lbs. per 1000
• Alternate Package Qty: RA733

Application Support

Certifications

• UL
• RoHS Compliance: Yes
• CSA
