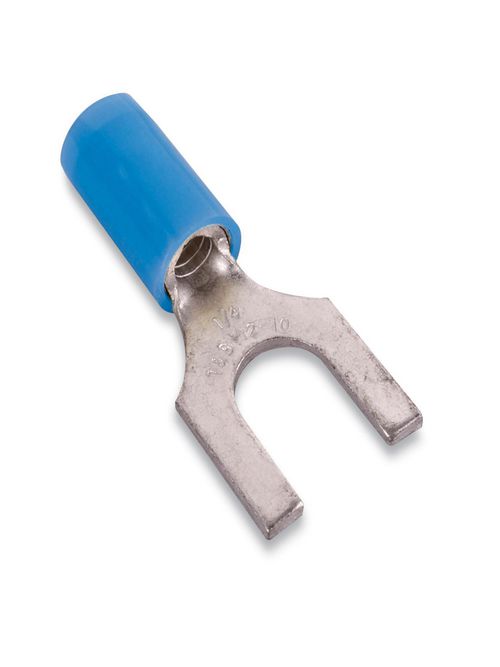

Thomas & Betts RB14-10F 18 to 14 AWG #10 Stud Blue Electrotinned Copper Nylon Insulated Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$133.24/c (100 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # RB14-10F
North Coast Part # 69420

Features

  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.

General

  • Material: Copper
  • Finish: Electro Tin-Plated
  • Color: Blue
  • Stud Size: #10
  • Wire Range: 18-14
  • Insulation Type: Insulated Nylon
  • Terminal Series: RB

Dimension Information

  • Stock Thickness: .03
  • C (inches): .25
  • Maximum Insulation (inches): .162
  • B (inches): .38
  • M (inches): .71
  • A (inches): .87

Specifications

  • Temperature Rating: 105°C
  • Flammability Rating: UL 94 V-2
  • Voltage Rating: 600V

Tooling

  • Recommended Tool: ERG4001
  • Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003, WT145A

Packaging

  • Package Type: Standard
  • Package Height: 8.8
  • Order Multiple: 100
  • T&B Weight Per UOM: 1.88 lbs. per 1000
  • T&B Sold in UOM: Each
  • Outer Package: 500
  • Inner Package: 100
  • Package Width: 9.5
  • Package Length: 15.1
  • Alternate Package Qty: RB1153

Application Support

Certifications


  • RoHS Compliance: Yes
  • CSA
  • UL

Overview

UPC 78621080413
GTiN 05414363158295
Finish Electro Tin-Plated
Width 1.1 in
Color Blue
Voltage 600 Volt
Type Short Sleeve
Thickness .03 in
Insulation Type Insulated Nylon
Material Copper
Stud Size #10
Terminal Type RB
Conductor Size 18-14 AWG
Height 3 in
Wire Size 18-14 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material Nylon
Flamability Class Rated V-2 Per UL94
Sub Brand Sta-Kon
