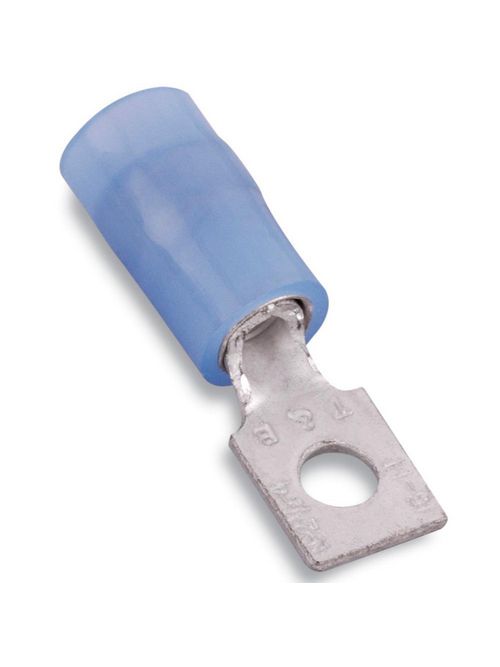

TB RB481 INSNYL RECT RING TERM 16-1
Product image thumbnail 0
Product image thumbnail 1
$123.25/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # RB481
North Coast Part # 342786

Features

  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
  • Application Tools: ERG4001, WT145C

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121432 Electrical terminals
  • IGCC: 4603 Electrical terminals
  • Brand Name: Sta-Kon
  • Type: Rectangular Ring Terminal
  • Special Features: Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
  • Standard: UL E9809
  • Wire Size: 16-14
  • Voltage Rating: 600V
  • Material: Copper
  • Color: Blue

European Specifications (ETIM)

  • ETIM: EC001052 Solderless copper terminals for copper conductors
  • Flange shape: Ring shape
  • Insulation: PA
  • Colour insulation: Blue
  • Reel packaging: N
  • AWG-range: 16-14
  • Material: Copper
  • Surface protection: Tinned

Packaging

  • Inner Quantity: 1000
  • Inner Dimensions (inches): 6.1x4.6x3.1
  • Outer Quantity: 10000
  • Outer Dimensions (inches): 17x10x7.7
  • Weight Uom: 3.13 lbs. per 1000

Overview

UPC 78621081826
GTiN 00786210818269
Length 1.109 in
Finish Tin Plated
Color Blue
Type Rectangular
Barrel Type Brazed/Overlapping Seam
Material Copper
Stud Size #6
Conductor Size 16-14 AWG
Wire Size 16-14 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material Nylon
Environmental Conditions UL94 V-2 Flammability
Sub Brand Sta-Kon
Voltage 600 Volt
Standard UL E9809
Carton Qty 1000
Box Quantity 10000
