TB RBS14-250AX HEAT-SHR FEM-250 DIS
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$412.19/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Order in multiples of 25 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # RBS14-250AX
North Coast Part # 10443

Features

  • Unique construction of the female disconnect offers long-term dependability.
  • Brazed seam serrated barrel provides maximum tensile strength.
  • Application Tools: WT1255

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121447 Wire terminal disconnect
  • IGCC: 4667 Wire terminal disconnect
  • Brand Name: Sta-Kon
  • Type: Disconnects
  • Special Features: Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
  • Material: Brass
  • Finish: Electro -Tin Plated
  • Color: Blue

European Specifications (ETIM)

  • ETIM: EC000516 Round or flat plug/receptacle
  • Insulation: Fully Insulated
  • Colour insulation: Blue
  • Material: Copper

Packaging

  • Inner Quantity: 25
  • Inner Dimensions (inches): 2.5x1.3x3.5
  • Outer Quantity: 250
  • Outer Dimensions (inches): 5.4x3.8x7.1
  • Weight Uom: 6.25 lbs. per 1000

Overview

UPC 78621007337

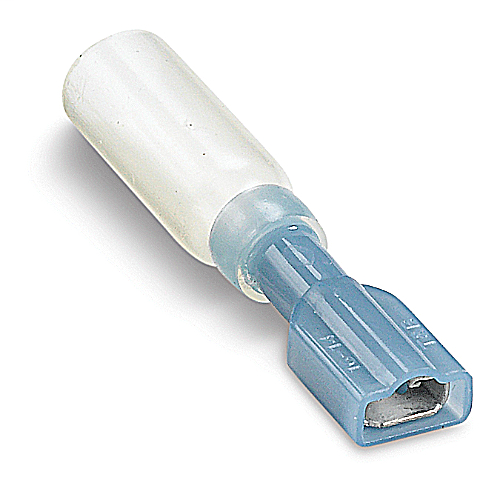

Item Long Description Heat Shrinkable Fully Insulated Female Disconnect Terminal, Length 1.77 Inches, Maximum Insulation .200, Tab Size .250x.032, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated
GTiN 05415022344936
Length 1 in
Finish Electro-Tin Plated
Color Blue
Type Heat Shrink
Barrel Type Brazed Seam, Serrated
Material Brass
Conductor Size 1.3 mm
Tab Size 6.3 x 0.8 mm
Family Brand Name Thomas & Betts
Insulation Material Polyethylene
Sub Brand Sta-Kon
Box Quantity 250
