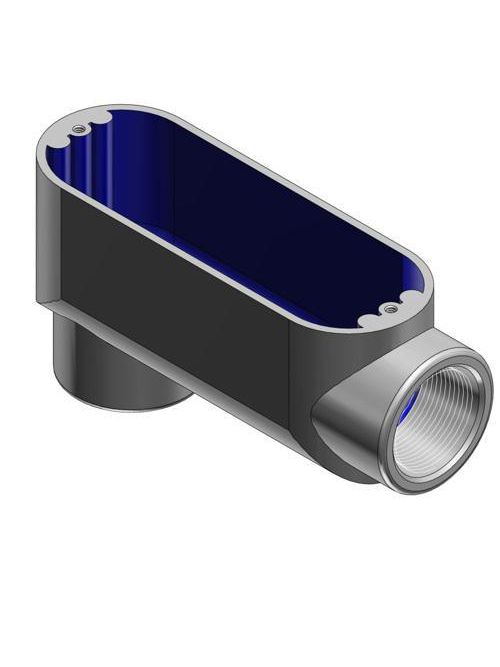

Red Dot ALB-10 4 Inch Rigid LB Conduit Body

Features

• Smooth throats for easy wire pulling
• Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
• Retained stainless steel cover screws

Application

• For use with rigid/IMC conduit
• Threaded conduit bodies maintain a weather resistant conduit system when used with covers and gaskets.

General

• Material: Die Cast Aluminum
• Trade Size (inches): 4
• Volume (cu.in.): 366

Dimension Information

• B (inches): 16 5/16
• D (inches): 5 9/16
• E (inches): 13 1/2
• A (inches): 15
• F (inches): 6 15/16
• C (inches): 5 1/2

Accessories & Components

• D-Pak Catalog Number: DALB-10-CG
• Gasket-Composition: GKV-7
• Gasket-Neoprene: GKN-7
• Cover-Die Cast: CV-7

Packaging

• Outer Package: 1
• Package Width: 7.69
• Package Height: 6.69
• T&B Weight Per UOM: 9.65 lbs. Each
• T&B Sold in UOM: Each
• Package Length: 16.88

Application Support

Notes

• Shipped with 1-die cast aluminum cover

Certifications

• UL
• RoHS Compliance: Yes
