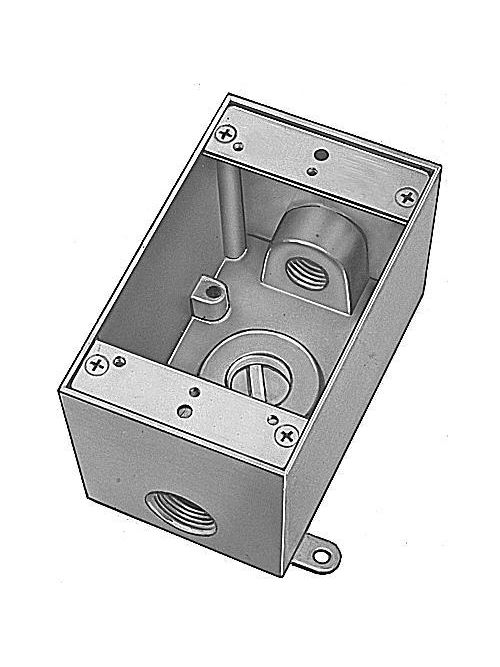

Red Dot DIH3-1-LM-BR Bronze Die-Cast Aluminum 3-Hole 1-Gang 1/2 Inch Rectangular Weatherproof Outlet Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$758.39/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Red Dot
Mfg Catalog # DIH3-1-LM-BR
North Coast Part # 161074

Features

  • Precision cast and machined surfaces permit safer wire pulling.
  • Securely fastened mounting plates reduce costly call backs
  • Convenient mounting lugs for a variety of mounting methods
  • Clean cover edges provide good gasket sealing.
  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
  • Clear UL and cubic content markings speed approval by inspectors

Application

  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
  • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Junction box for branch conduits

General

  • Finish: Powder-Coated
  • Number of Gangs: One
  • Volume (cu.in.): 17
  • Material: Die Cast Aluminum
  • Color: Bronze

Dimension Information

  • E (inches): 3 13/16
  • J (inches): 1 1/2
  • F (inches): 3 1/2
  • H (inches): 1 7/8
  • G (inches): 3 1/4
  • Hub Size (inches): 1/2
  • A (inches): 4 9/16
  • C (inches): 2
  • D (inches): 5/8
  • B (inches): 2 13/16

Packaging

  • Package Width: 5.75
  • Outer Package: 10
  • Package Height: 6.5
  • T&B Weight Per UOM: 0.56 lbs. Each
  • T&B Sold in UOM: Each
  • Package Length: 10.25

Application Support

Notes

  • Rain tight when used with appropriate Red Dot covers.

Certifications

  • UL

Overview

UPC 04226981021
Finish Powder-Coated
Width 5-3/4 in
Color Bronze
Material Die-Cast Aluminum
Height 6-1/2 in
Family Brand Name Red Dot
Number of Gangs 1
GTiN 00042269810211
Type Device Boxes, Covers & Accessories
Applications Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
