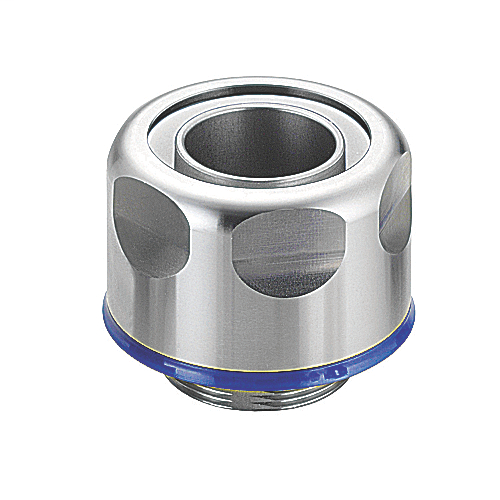

OC SPL32/100/SAM 1 PC 316SS NPT100
Product image thumbnail 0
Product image thumbnail 1
$20,180.43/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # SPL32/100/SAM
North Coast Part # 1554051

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121311 Electrical fittings
  • IGCC: 4441 Electrical fittings
  • Brand Name: Adaptaflex
  • Type: Liquid Tight Non-Metallic Fitting
  • Application: Indoor Splash Zone Areas or Food Processing Equipment
  • Size: NC 32mm
  • Material: Stainless Steel
  • Color: Metallic
  • Connection: Straight
  • Cable Entry: 1 Inch NPT Thread

European Specifications (ETIM)

  • ETIM: EC001180 Screw connection for protective metallic hose
  • Nominal diameter: 32mm
  • Degree of protection (IP) conduit dependant: IP40-IP69
  • Model: Straight
  • Revolving thread: Y
  • Construction type: External thread
  • Connection type screw connection to housing: Thread
  • Thread type: NPT
  • Thread connection size: Other
  • One-piece: Y
  • Material housing: Stainless steel
  • Thread length: 21mm
  • Total length: 57.9mm
  • Total height: 49.0mm
  • Approved in combination with protective conduit DIN EN 61386-23: N
  • Approved in combination with protective conduit CSA: N
  • Approved in combination with protective conduit UL: Y
  • Approved in combination with protective conduit FI: N
  • Operating temperature: -50-+130°C

Packaging

  • Outer Quantity: 1
  • Outer Dimensions (inches): 2.1x2.1x2.1
  • Weight Uom: 0.66 lbs. Each

Overview

UPC 78621021312
Color Metallic
Operating Temperature -50 To 130 C
Diameter 32 mm
Material Stainless Steel
Construction Type External Thread
Connection Type Straight
Thread Length 21 mm
Family Brand Name Thomas & Betts
Housing Material Stainless Steel
Box Quantity 1
Thread Type NPT
GTiN 00786210213125
Size NC 32mm
Type Liquid Tight Non-Metallic Fitting
Applications Indoor Splash Zone Areas or Food Processing Equipment
Cable Entry 1 in
