SC 171-SV18-1858 DP BOX SV18 BRKT 5
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,666.88/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Steel City
Mfg Catalog # 171-SV18-1858
North Coast Part # 678597

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121308 Outlet box
  • IGCC: 4438 Steel Outlet Boxes
  • Brand Name: Steel City
  • Type: Gang Boxes
  • Special Features: Pre-installed 10-1/2 Inches insulated grounding pigtail
  • Application: For use with Conduit
  • Number Of Outlet: 2
  • Material: Steel
  • Size: 4 Inches Length x 4 Inches Width x 2-1/8 Inches Depth
  • Cubic Capacity: 30.3 Cubic Inches
  • Knockouts: 16
  • Color: Silver

European Specifications (ETIM)

  • ETIM: EC002600 Box/housing for surface mounting on the wall/ceiling
  • Shape: Square
  • Mounting method: Wall-/ceiling mounting
  • Length: 101.6mm
  • Width: 101.6mm
  • Depth: 53.975mm
  • Material: Steel
  • Cover: Not transparent
  • Weatherproof: N

Packaging

  • Outer Quantity: 10
  • Outer Dimensions (inches): 20.5x15.5x8.3
  • Weight Uom: 1.86 lbs. Each

Overview

UPC 78599102780

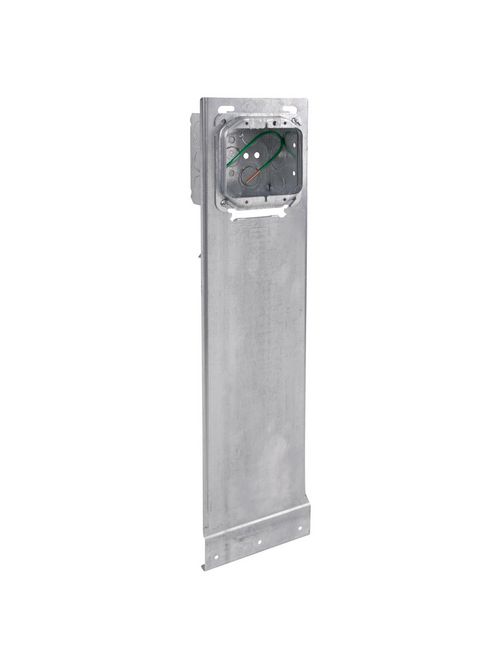

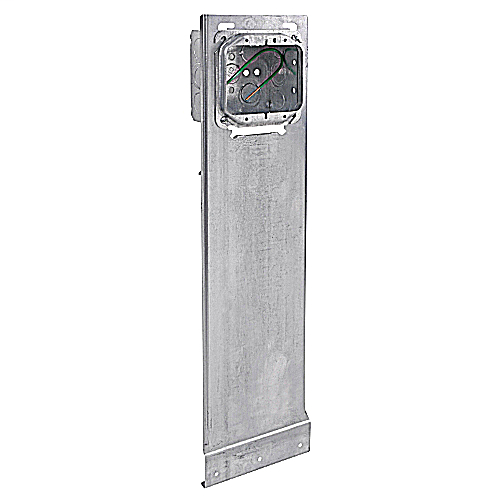

Item Long Description Pre-Fabricated, Two Gang Outlet Box, 30.3 Cubic Inches, 4 Inch Square x 2-1/8 Inch Deep, 1/2 and 3/4 Inch Eccentric Knockouts, 5/8 Inch Raised Box Cover, with Grounding #12 AWG Solid Ground Wire Pigtail and 18 Inch Vertical Mounting Bracket, For Use with Conduit
Length 101.6 mm
Width 101.6 mm
Color Silver
Material Steel
Depth 53.975 mm
Shape Square
Family Brand Name Thomas & Betts
Box Quantity 10
GTiN 00785991027808
Type eFab
Cable Entry Knockouts
