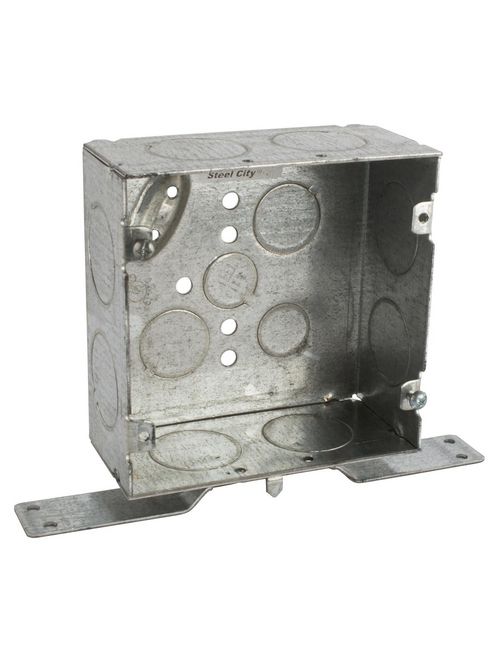

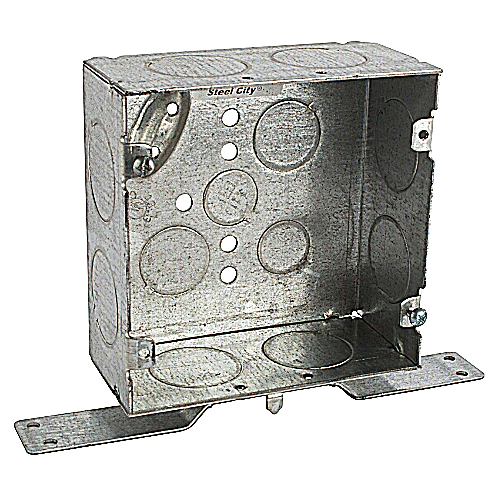

BW 5-SDW-FB-1 WLD 4 11/16IN SQ OTLT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,220.43/c (100 ea)
In Stock | 78 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Steel City
Mfg Catalog # 5-SDW-FB-1
North Coast Part # 152862

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121308 Outlet box
  • IGCC: 4438 Steel Outlet Boxes
  • Brand Name: Steel City
  • Type: Outlet Boxes
  • Application: For use with conduit
  • Standard: UL E2969
  • Number Of Outlet: 2
  • Material: Steel
  • Size: 4-11/16 Inches Height x 4-11/16 Inches Width x 2-1/8 Inches depth
  • Cubic Capacity: 42 Cubic Inches
  • Knockouts: 9
  • Color: Silver

European Specifications (ETIM)

  • ETIM: EC002600 Box/housing for surface mounting on the wall/ceiling
  • Shape: Square
  • Mounting method: Wall-/ceiling mounting
  • Length: 119.063mm
  • Width: 119.063mm
  • Depth: 53.975mm
  • Material: Steel
  • Weatherproof: N

Packaging

  • Outer Quantity: 25
  • Outer Dimensions (inches): 20.5x8.63x10
  • Weight Uom: 1.19 lbs. Each

Categories

Overview

UPC 78172004170
Item Long Description Two Gang Square Box, 42 Cubic Inches, 4-11/16 Inch Square x 2-1/8 Inch Deep, 1/2 Inch, 3/4 Inch, and 1 Inch Knockouts, Galvanized Steel, Welded Construction, Flat Bracket and Four Tapped Ears, For use with Conduit
Length 119.063 mm
Width 119.063 mm
Color Silver
Material Steel
Depth 53.975 mm
Shape Square
Family Brand Name Steel City
Box Quantity 25
GTiN 00781720041701
Size 4-11/16 Inches Height x 4-11/16 Inches Width x 2-1/8 Inches depth
Type Outlet Boxes
Applications For use with conduit
