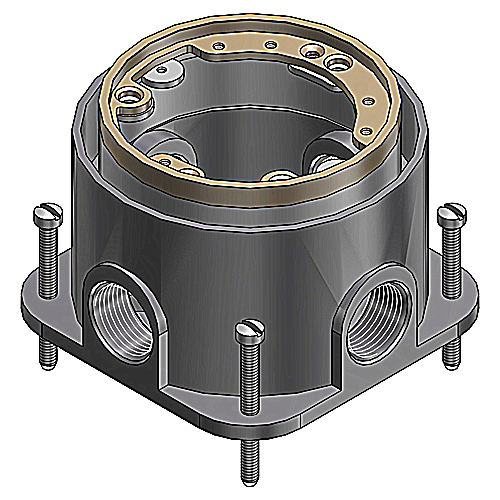

SC 601-1/2-SC 601 W/.5 INCH TAPPED
$226.26/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Steel City
Mfg Catalog # 601-1/2-SC
North Coast Part # 69724

Features

  • Water-tight body
  • Painted silver enamel inside and out for additional corrosion resistance.
  • Interior and exterior leveling screws permit adjustment to meet finished floor.
  • Shipped complete with expendable cap to prevent ingress of concrete during pour.

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121307 Floor boxes
  • IGCC: 4432 Floor boxes
  • Brand Name: Steel City
  • Type: Flush Service
  • Special Features: Fully adjustable
  • Application: Ideal for the modern office with workstations that have power, communications and data equipment.
  • Standard: UL E2969
  • Material: Cast Iron

European Specifications (ETIM)

  • ETIM: EC000024 Installation box for underfloor-installation
  • Cover model: Rectangular
  • Suitable for wet cleaning: N
  • Suitable for hollow floor: Y
  • Material: Other
  • With opening carpeting: N
  • Min. built-in depth: 92.075mm
  • Colour: Other
  • Length external dimension: 130.175mm
  • Width outside dimension: 107.95mm

Packaging

  • Inner Quantity: 1
  • Inner Dimensions (inches): 6x5x4
  • Outer Quantity: 4
  • Outer Dimensions (inches): 11.4x6.6x10
  • Weight Uom: 5.05 lbs. Each

Overview

UPC 78599161530
GTiN 00785991615302
Color Other
Material Cast Iron
Family Brand Name Steel City
Carton Qty 1
Box Quantity 4
Type Flush Service
Applications Ideal for the modern office with workstations that have power, communications and data equipment.
