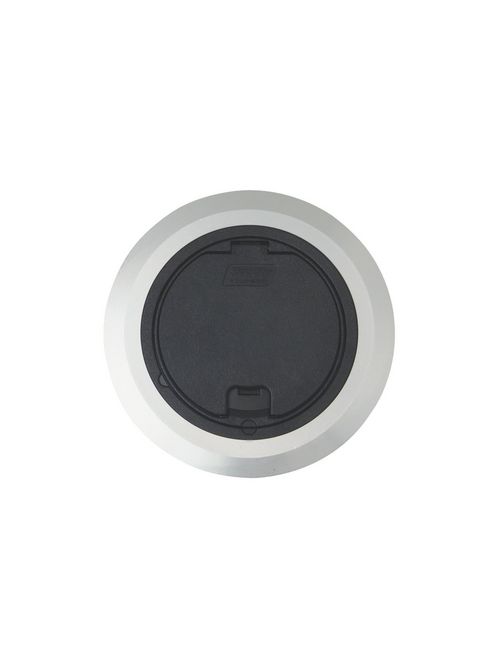

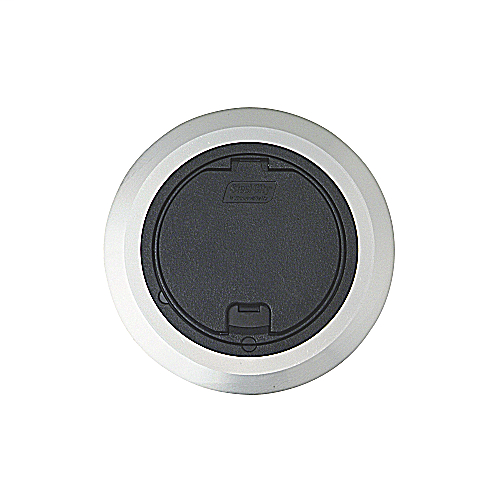

Steel City 68R-CST-ALM Black Round Recessed Cover with Aluminum Flange
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 9 to 15 Days
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Steel City
Mfg Catalog # 68R-CST-ALM
North Coast Part # 548106


  • Unique cover provides aesthetic recessed service
  • Patented lid can be rotated to expose a small opening for cords, enabling the lid to close flush with the floor while in use.
  • Cover accepts 1-duplex or GFCI receptacle, no special device plates required.
  • Cover accepts up to two communications jacks
  • Includes (1)-2-port keystone data plate and 1-blank data plate for customer cut-outs or power only applications.


North American Specifications (UNSPSC)

  • UNSPSC: 39121307 Floor boxes
  • IGCC: 4432 Floor boxes
  • Brand Name: Steel City
  • Type: Flush Service
  • Special Features: Unique cover provides aesthetic recessed service
  • Application: For use with 68 P round floor box
  • Standard: UL E11461
  • Material: Non-Metallic
  • Color: Black with Aluminum Flange

European Specifications (ETIM)

  • ETIM: EC001906 Mounting cover for underfloor draw-in box
  • Mounting opening: Round
  • Cover mounting opening: Y
  • Floor maintenance: Dry
  • Material: Aluminium


  • Inner Quantity: 1
  • Inner Dimensions (inches): 6.25x6x5.12
  • Outer Quantity: 4
  • Outer Dimensions (inches): 16.75x15x7.25
  • Weight Uom: 1.38 lbs. Each


UPC 78599104445
Item Long Description Recessed Service Floor Box Cover Kit, Accepts Duplex Receptacles GFI Receptacles and 2 Port Keystone Data Plate, Black with Aluminum Flange, For use with Flush Service Floor Box, 100 Cubic Inches, Opening Diameter 5-5/32 Inches, Base Diameter 6-3/8 Inches, Depth 6 Inches, 3/4 Inch and 1 Inch Conduit Tapping, Plastic, For Power or Communications/Data and Wood Sub-Floor and Raised Floor Applications
GTiN 00785991044454
Color Black/Silver
Type Cup Shape, Round, Recessed
Material Non-Metallic
Applications For use with 68 P round floor box
Family Brand Name Steel City
Depth 85.725 mm
Standard UL E11461
Material Type Non-Metallic
Used With 68 P Round Floor Box
Sub Brand Steel City
Box Quantity 4
