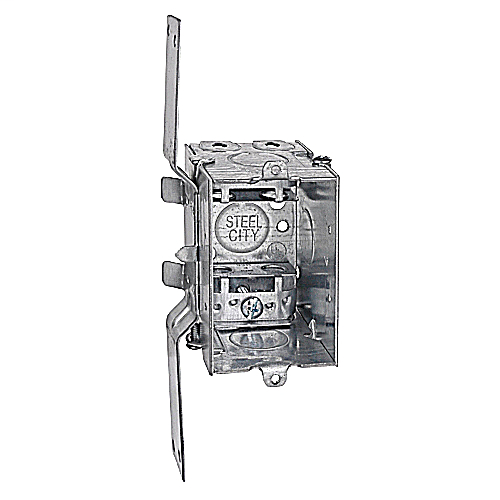

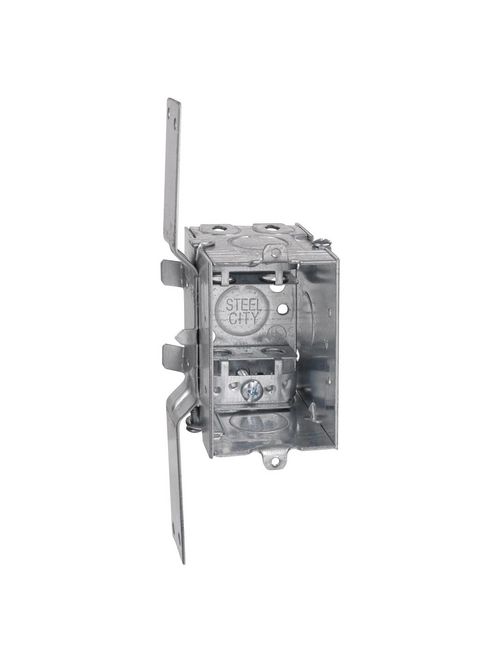

Steel City LXV-25 3 x 2 x 2-1/2 Inch Dimensions 12.5 In Gangable Steel Switch Box with Bracket and Clip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,224.82/c (100 ea)
Usually ships within 9 to 15 Days
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Steel City
Mfg Catalog # LXV-25
North Coast Part # 679860


North American Specifications (UNSPSC)

  • UNSPSC: 39121306 Switch box
  • IGCC: 4430 Switch box
  • Brand Name: Steel City
  • Type: Switch Boxes
  • Application: For use with armored/metal clad cable
  • Standard: UL E2969
  • Material: Steel
  • Size: 3 Inches Height x 2 Inches Width x 2-1/2 inches depth
  • Color: Silver
  • Cubic Capacity: 12.5 Cubic Inches
  • Knockouts: Yes
  • Number Of Outlet: 1

European Specifications (ETIM)

  • ETIM: EC000080 Surface mounted housing for flush mounted switching device
  • Assembly arrangement: Surface mounted housing
  • Mounting direction: Vertical
  • Material: Metal
  • Colour: Silver
  • Transparent: N
  • Width of device: 50.8mm


  • Outer Quantity: 25
  • Outer Dimensions (inches): 19.5x8x8.6
  • Weight Uom: 72 lbs. per 100


UPC 78599111880
Item Long Description Gangable Switch Box, 12.5 Cubic Inches, 3 Inches Long x 2 Inches Wide x 2-1/2 Inches Deep, 1/2 Inch Knockouts, Pre-Galvanized Steel, Armored Cable Clamps (C-3) and CV Bracket Recessed 7/8 Inches, For use with Armored/Metal Clad Cable
GTiN 00785991118803
Color Silver
Material Steel
Family Brand Name Steel City
Box Quantity 25
Size 3 Inches Height x 2 Inches Width x 2-1/2 inches depth
Type Switch Boxes
Applications For use with armored/metal clad cable
