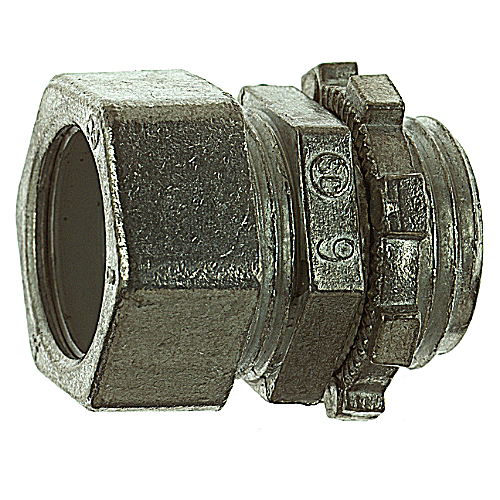

Steel City TC-212-SC 3/4" EMT Compression Connector - Die-Cast Zinc - Non-Insulated
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$644.35/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts / Steel City
Mfg Catalog # TC212-SC
North Coast Part # 155313

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121434 Electrical metallic tubing EMT connectors
  • IGCC: 4611 Electrical metallic tubing EMT connectors
  • Brand Name: Steel City
  • Type: EMT Conduit Fittings
  • Special Features: Concrete Tight
  • Application: For use with EMT conduit
  • Standard: UL E16592
  • Material: Zinc Die Cast

European Specifications (ETIM)

  • ETIM: EC001180 Screw connection for protective metallic hose
  • Nominal size in inch: 3/4 inch
  • Model: Straight
  • Revolving thread: N
  • Construction type: External thread
  • Connection type screw connection to housing: Thread
  • One-piece: Y
  • Material housing: Zinc die-cast
  • Surface protection: Untreated
  • Approved in combination with protective conduit DIN EN 61386-23: N
  • Approved in combination with protective conduit FI: N

Packaging

  • Inner Quantity: 25
  • Inner Dimensions (inches): 8x4.75x3.25
  • Outer Quantity: 250
  • Outer Dimensions (inches): 16.1x13.4x7.3
  • Weight Uom: 12 lbs. per 100

Overview

GTiN 00785991437324
Material Zinc Die Cast
Construction Type External Thread
Family Brand Name Steel City
Housing Material Zinc Die-cast
Box Quantity 250
Product UPC 78599143732
Type EMT Conduit Fittings
Applications For use with EMT conduit
Trade Size null
