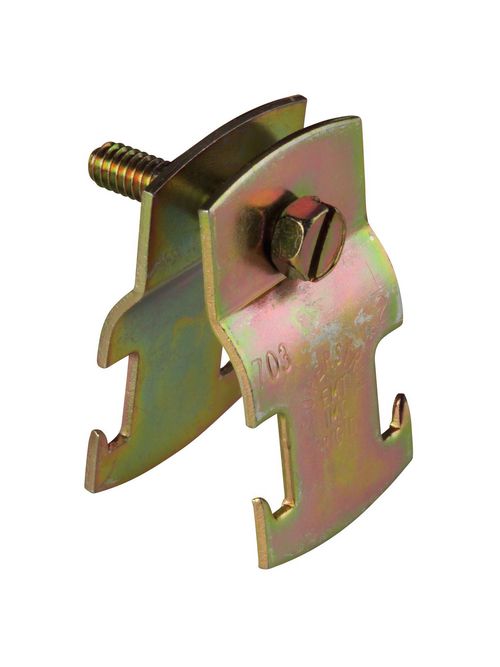

Superstrut 703-1-1/4 1-1/4 Inch Universal Clamp

Features

• Square nut is captivated on the shoulder for easy one-handed tightening.
• Straps are interchangeable with 1-1/2 Inch strut, for broader application.
• Straps are shipped assembled so counting and sorting are easier.
• Pipe and conduit sizes are shown on the strap for easy identification.

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 31162906 Hose or pipe clamps
• IGCC: 3064 Hose or pipe clamps
• Brand Name: Superstrut
• Type: Pipe Straps, Pipe Clamps & Hangers (Series 700)
• Special Features: Bolt head is combination slot and hex head for flexibility of attachment
• Application: Superstrut Pipe Straps are designed to be twist inserted anywhere along the slot side of the channel.
• Material: Steel
• Finish: GoldGalv/Standard
• Maximum Clamp Diameter: 1.660 Inches
• Minimum Clamp Diameter: 1.508 Inches

European Specifications (ETIM)

• ETIM: EC002470 Mounting clamp for cable protection tubes
• Material: Steel
• Rotatable: N

Packaging

• Outer Quantity: 50
• Outer Dimensions (inches): 10.25x7.25x4.5
• Weight Uom: 12.5 lbs. per 100
