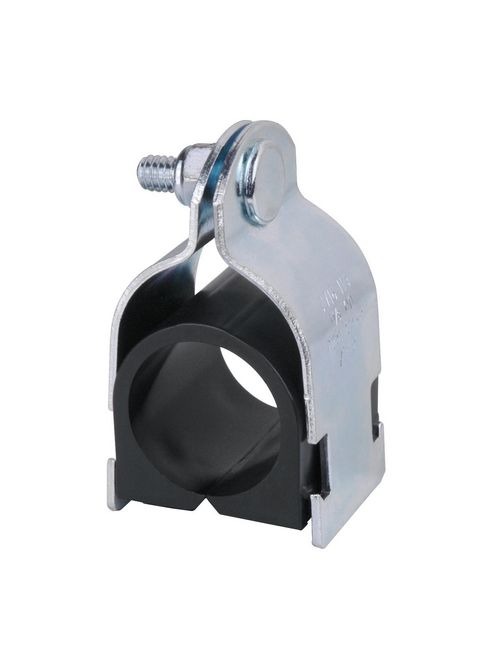

SS A716-1-1/4 1/4 CUSHION CLAMP

Features

• Installation is easy and requires no more time than a simple pipe clamp installation.
• Cushion absorbs the shocks and associated vibrations from fluid surges in tubes, pipes and hoses.
• Can be used in temperatures from 300 degree F to -40 degree F.
• Snap-Guard Cushioned Clamp Assemblies are available individually bagged.

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 31162905 Beam clamps
• IGCC: 3063 Beam clamps
• Brand Name: Superstrut
• Type: Pipe Straps, Pipe Clamps & Hangers (Series 700)
• Special Features: Assembly includes steel clamp with bolt/locknut and cushion.
• Application: To secure pipes, tubes and hoses for fluid conductors.
• Material: Steel
• Finish: GoldGalv/Standard
• Length: 2.859 in
• Width: 1-1/4 in
• Maximum Clamp Diameter: 1-1/4 Inch
• Gauge: 14 Gauge

European Specifications (ETIM)

• ETIM: EC002470 Mounting clamp for cable protection tubes
• Material: Steel
• Rotatable: N

Packaging

• Outer Quantity: 10
• Outer Dimensions (inches): 9.2x7.5x5.2
• Weight Uom: 28 lbs. per 100
