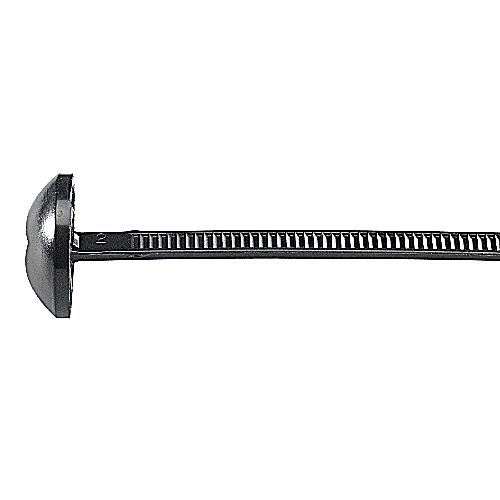

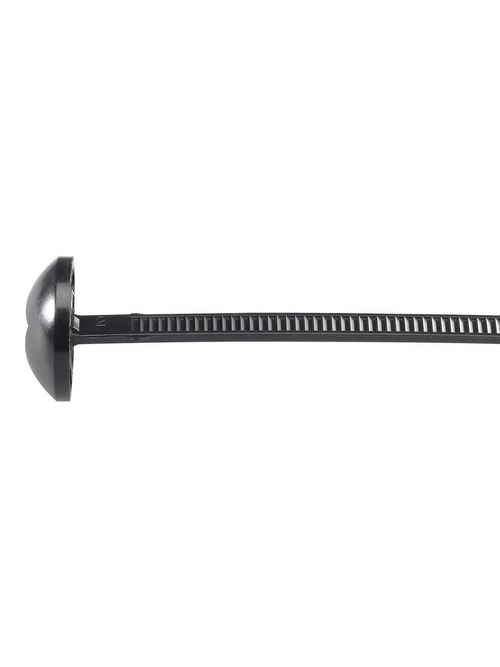

TB TY41M CABLE TIE 65LB 10IN BK NYL
Product image thumbnail 0
Product image thumbnail 1
$162.05/c (100 ea)
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # TY41M
North Coast Part # 1435405

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121703 Cable ties
  • IGCC: 5037 Cable Ties & Wraps
  • Brand Name: Ty-Rap
  • Type: Button Head
  • Width: 0.22 in ; 5.59 mm
  • Length: 9.6 in ; 243.84 mm
  • Thickness: 0.65 Inch/1.65mm
  • Bundle Diameter: Max 2.37 Inches/60mm
  • Material: Nylon/Polyamide 6.6
  • Color: Black
  • Lock Mechanism: Stainless Steel Barb
  • Tensile Strength: 65 Pounds/289 Newtons

European Specifications (ETIM)

  • ETIM: EC000046 Cable tie
  • Band width: 5.59mm
  • Length belt/tape/tie: 243.84mm
  • Tie thickness: 1.65mm
  • Max. bundle diameter: 60mm
  • Min. holding force: 289N
  • Operating temperature: -40-+85°C
  • Model: Internal toothing
  • Band closure: Steel nose
  • Material: Plastic
  • Material quality: Polyamide PA
  • Surface protection: Untreated
  • UV-stable acc. ASTM D6779: N
  • Halogen free: Y
  • Colour: Black
  • Transparent: N
  • Reflective (fluorescent): N
  • Text strip: None
  • Solvable fastener: N
  • VG approval: N
  • MIL approval: N
  • UL approval: Y

Packaging

  • Inner Quantity: 500
  • Outer Quantity: 1000
  • Outer Dimensions (inches): 14.3x13.3x13
  • Weight Uom: 0.88 lbs. per 100

Overview

UPC 78621081094
GTiN 00786210810942
Length 9.6 in
Width 0.22 in
Color Black
Type Button Head, Internal Toothing
Thickness 0.65 in
Material Nylon/Polyamide 6.6
Temperature Rating -40 to 85 C
Family Brand Name Ty-Rap
Tensile Strength 65 lb
Bundle Diameter 2.37 in
Sub Brand Ty-Rap
Operating Temperature -40 To 85 C
Carton Qty 500
Box Quantity 1000
