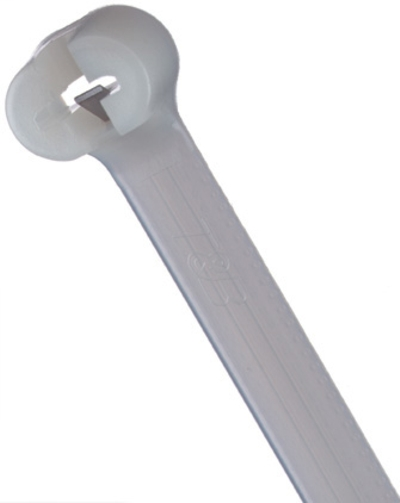

T&B TY5232M 8IN NAT NYL CBL TIE

Features

• The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
• Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
• Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
• Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.

General

• Color: Natural
• Material: Nylon 6.6

Dimension Information

• Nominal Length (inches): 8
• Length (inches): 8
• Width (inches): .086
• Max. Wire Bundle Diameter (inches): 2

Specifications

• Flammability Rating: UL 94 V-2
• Temperature Rating: -40°F to 185°F

Tooling

• Application Tools: ERG50, WT1-TB

Packaging

• Package Length: 9.7
• Inner Package: 100
• T&B Sold in UOM: Each
• Order Multiple: 100
• T&B Weight Per UOM: 1.88 lbs. per 1000
• Package Type: Regular
• Package Height: 6.4
• Outer Package: 500
• Package Width: 4.1
