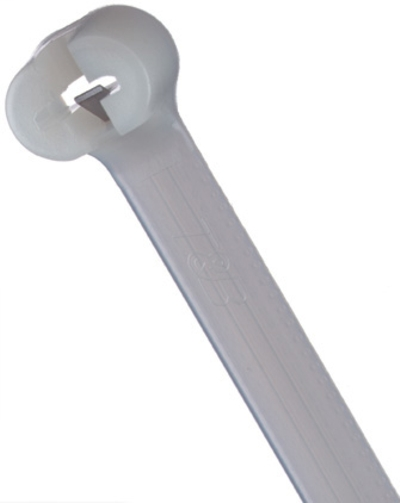

Thomas & Betts TY5242M Nylon Cable Tie, 8" Length, .14" Width, Natural
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$47.15/c (100 ea)
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # TY5242M
North Coast Part # 14948

Features

  • Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
  • Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
  • The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.

General

  • Color: Natural
  • Material: Nylon 6.6

Dimension Information

  • Max. Wire Bundle Diameter (inches): 2
  • Length (inches): 8.19
  • Width (inches): .140
  • Nominal Length (inches): 8

Specifications

  • Flammability Rating: UL 94 V-2
  • Temperature Rating: -40°F to 185°F

Tooling

  • Application Tools: ERG50, WT1-TB

Packaging

  • Inner Package: 100
  • T&B Weight Per UOM: 2.5 lbs. per 1000
  • Order Multiple: 100
  • Package Width: 4.19
  • T&B Sold in UOM: Each
  • Package Length: 10
  • Outer Package: 500
  • Package Height: 6.5
  • Package Type: Regular

Application Support

Certifications

Documents

Overview

UPC 78621083079
Item Long Description Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 208mm (8.2 Inches), Width of 3.6mm (0.14 Inches), Thickness of 1mm (0.04 Inch), Tensile Strength Rating of 178 Newtons (40 Pounds)
GTiN 00786210830797
Length 8.19 in
Width 0.142 in
Color Natural
Type Standard, Internal Toothing
Thickness 0.041 in
Material Nylon 6/6
Temperature Rating -40 to 85 C
Family Brand Name Ty-Rap
Standard Packaging Qty 100/Pack
Tensile Strength 40 lb
Bundle Diameter 0.08 - 1.97 in
Sub Brand Ty-Rap
