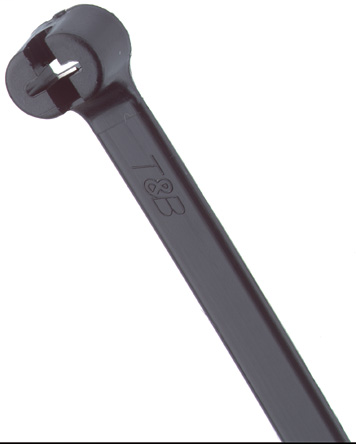

Thomas & Betts TY526MX Weather Resistant Nylon Cable Tie, 11" Length, .14" Width, Black
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$77.83/c (100 ea)
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # TY526MX
North Coast Part # 18553

Features

  • The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
  • Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
  • Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.

General

  • Color: Black
  • Material: Nylon 6.6 Weather Resistant

Dimension Information

  • Length (inches): 11.1
  • Nominal Length (inches): 11
  • Max. Wire Bundle Diameter (inches): 3
  • Width (inches): .140

Specifications

  • Temperature Rating: -40°F to 185°F
  • Flammability Rating: UL 94 V-2

Tooling

  • Application Tools: ERG50, WT1-TB

Packaging

  • Package Height: 5.3
  • T&B Sold in UOM: Each
  • Outer Package: 500
  • T&B Weight Per UOM: 3.75 lbs. per 1000
  • Inner Package: 100
  • Package Width: 5.6
  • Package Type: Regular
  • Order Multiple: 100
  • Package Length: 15.4

Application Support

Certifications

Documents

Overview

GTiN 00786210839363
Length 11.08 Inch
Width 0.14 in
Color UV Black
Type Standard, Internal Toothing
Thickness 0.05 in
Material Nylon
Temperature Rating -40 to 85 C
Family Brand Name Ty-Rap
Standard Packaging Qty 100/Pack
Tensile Strength 30 lb
Bundle Diameter 0.08 - 3 in
Sub Brand Ty-Rap
Product UPC 78621083936
