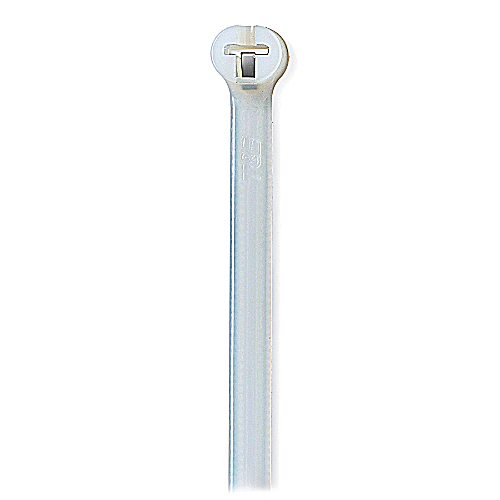

T&B TY5272M 9IN NAT NYL CBL TIE
$86.75/c (100 ea)
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # TY5272M
North Coast Part # 17124

Features

  • Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
  • The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
  • Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.

General

  • Color: Natural
  • Material: Nylon 6.6

Dimension Information

  • Length (inches): 8.75
  • Nominal Length (inches): 9
  • Width (inches): .270
  • Max. Wire Bundle Diameter (inches): 2

Specifications

  • Temperature Rating: -40°F to 185°F
  • Flammability Rating: UL 94 V-2

Tooling

  • Application Tools: ERG120, WT197

Packaging

  • Order Multiple: 50
  • Package Height: 7.6
  • Package Type: Regular
  • Inner Package: 50
  • Package Width: 3.9
  • Package Length: 9.5
  • T&B Weight Per UOM: 1 lbs. per 100
  • Outer Package: 250
  • T&B Sold in UOM: Each

Application Support

Certifications

Documents

Overview

UPC 78621085543
GTiN 00786210855431
Length 8.75 in
Width .270 in
Color Natural
Thickness 0.05 in
Material Nylon 6.6
Temperature Rating -40 To 185 F
Family Brand Name Thomas & Betts
