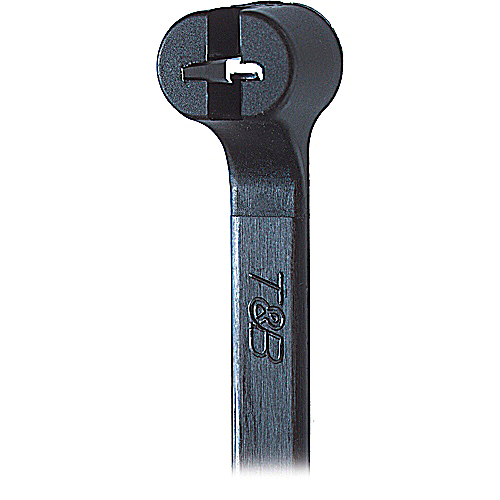

Thomas & Betts TY5272MX 50/Pack 2-Piece Distributor Pack 9 Inch 120 lb Ultraviolet Black Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$123.23/c (100 ea)
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # TY5272MX
North Coast Part # 159234

Features

  • The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
  • Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
  • Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.

General

  • Color: Black
  • Material: Nylon 6.6 Weather Resistant

Dimension Information

  • Nominal Length (inches): 9
  • Width (inches): .270
  • Length (inches): 8.75
  • Max. Wire Bundle Diameter (inches): 2

Specifications

  • Flammability Rating: UL 94 V-2
  • Temperature Rating: -40°F to 185°F

Tooling

  • Application Tools: ERG120, WT197

Packaging

  • Package Height: 7.5
  • T&B Weight Per UOM: 7.5 lbs. per 1000
  • Outer Package: 250
  • Order Multiple: 50
  • Inner Package: 50
  • Package Length: 9.6
  • Package Type: Regular
  • T&B Sold in UOM: Each
  • Package Width: 3.9

Application Support

Certifications

Documents

Overview

GTiN 00786210855448
Length 8-3/4 Inch
Width 0.27 in
Color UV Black
Type Standard
Thickness 0.05 in
Material Nylon
Temperature Rating -40 to 85 C
Family Brand Name Ty-Rap
Standard Packaging Qty 50/Pack
Tensile Strength 120 lb
Bundle Diameter 0.236 - 1.97 in
Sub Brand Ty-Rap
Product UPC 78621085544
