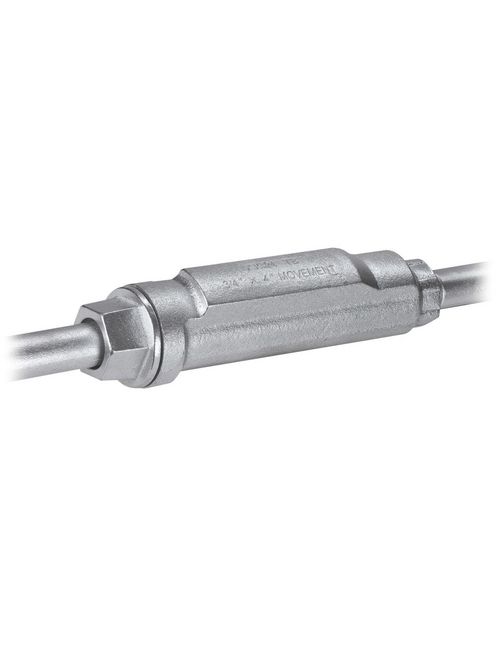

TB XJG64-TB 2IN EXPANSION COUPLING,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$466.73/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # XJG64-TB
North Coast Part # 422328

Features

  • True Internal Bonding Jumper-no external grounding strap required, tamper-proof internal jumper protected from the environment.
  • Exceeds code requirements for long conduit runs to permit linear movement.

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39131707 Electrical conduit coupling
  • IGCC: 5548 Electrical conduit coupling
  • Brand Name: T&B
  • Type: XJG Expansion Couplings
  • Special Features: No Disassembly Necessary to Install. Fast, Simple, and Requires Fewer Steps
  • Application: Allows for The Contraction and Expansion of a Conduit Run Without Reducing The Mechanical or Bonding Integrity of The Raceway
  • Standard: UL E23018, CSA
  • Trade Size: 2 Inch
  • Outside Diameter: 3.86 Inch
  • Length: 11.25 in
  • Material: Malleable Iron

European Specifications (ETIM)

  • ETIM: EC000939 Coupler for installation tubes
  • Material: Metal
  • Material quality: Other
  • Surface protection: Other
  • Model: Thread
  • Two piece: N
  • With inspection opening and cover: N

Packaging

  • Outer Quantity: 1
  • Outer Dimensions (inches): 30.62x6x6.5
  • Weight Uom: 10.04 lbs. Each

Overview

GTiN 00786210881034
Length 11.25 in
Type XJG Expansion Couplings
Material Iron
Applications Allows for the Contraction and Expansion of a Conduit Run without Reducing the Mechanical or Bonding Integrity of the Raceway
Trade Size 2 Inch
Connection Type Threaded
Family Brand Name Thomas & Betts
Box Quantity 1
Outside Diameter 3.86 in
Standard Packaging Qty 1/Case
Blade Dimensions 3.86 in OD x 11-1/4 in L
Product UPC 78621088103
Size 2 in
