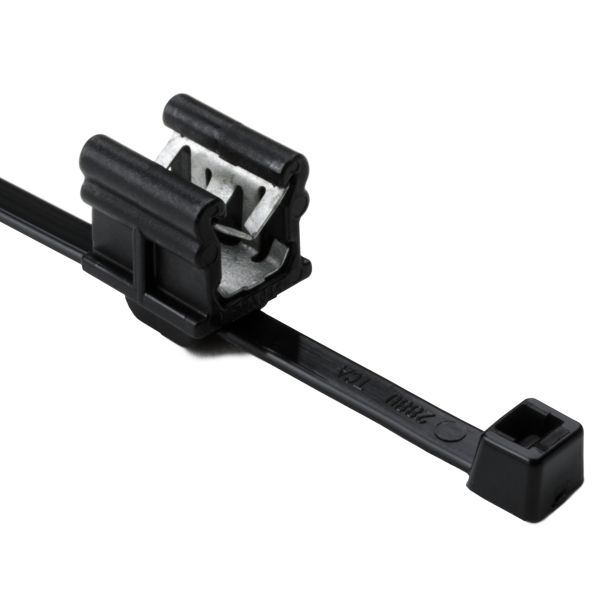

TYN 156-00537 Cable Tie&EC19, 8", P
$1.68/ea
Usually ships within 11 to 17 Days
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Tyton Hellermann
Mfg Catalog # 156-00537
North Coast Part # 819069

Features

  • Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
  • Edge Clip provides low insertion force and high extraction force ideal for assembly environments.

Specifications

  • Color: Black (BK)
  • Material: Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
  • UNSPSC Key: 39121703
  • Height H (Imperial): 0.05 "
  • Height H (Metric): 1.2 mm
  • Length L (Imperial): 8.0 "
  • Length L (Metric): 202.0 mm
  • Bundle Diameter Max. (Imperial): 2.0 "
  • Bundle Diameter Max. (Metric): 50.0 mm
  • Bundle Diameter Min. (Imperial): 0.20 "
  • Bundle Diameter Min. (Metric): 5.0 mm
  • Panel Thickness Max. (Imperial): 0.24 "
  • Panel Thickness Max. (Metric): 6.0 mm
  • Panel Thickness Min. (Imperial): 0.12 "
  • Panel Thickness Min. (Metric): 3.0 mm
  • Width W (Imperial): 0.18 "
  • Width W (Metric): 4.6 mm
  • Flammability: UL 94 HB
  • Operating Temperature: -40°F to +221°F (-40°C to +105°C);-40°F to +230°F (-40°C to +110°C)
  • Tensile Strength Min. (Imperial): 50.0 lbs
  • Tensile Strength Min. (Metric): 225 N
  • Variant: Inside Serrated
  • Package Quantity (Imperial): 500
  • Country of Origin: DE

Certifications

  • ROHS Compliant: Yes

Overview

UPC 08930631006
GTiN 00089306310068
Length 8.0 in
Width 0.18 in
Color Black
Operating Temperature -40 To 105 C
Type T50REC19
Material Heat Stabilized,Polyamide 6.6 Heat Stabilized (PA66HS),Polyamide 6.6 High Impact Modified,UV Resistant (PA66HIRHS)
Applications This cable tie and edge clip assembly is ideal for use where holes are not acceptable or where adhesives will fail due to temperature problems. Edge clips are widely used for fixing and bundling cables and wires within automotive, trucking, heavy equipment, solar panel, wind power, and white goods equipment manufacturing.
Height 0.05 in
Cable Size 8 in
Family Brand Name HellermannTyton
Flamability Class UL 94 HB
Tensile Strength 225 N
Bundle Diameter 2.0 in
Sub Brand Self-Affixing Cable Ties
Country of Origin Germany
