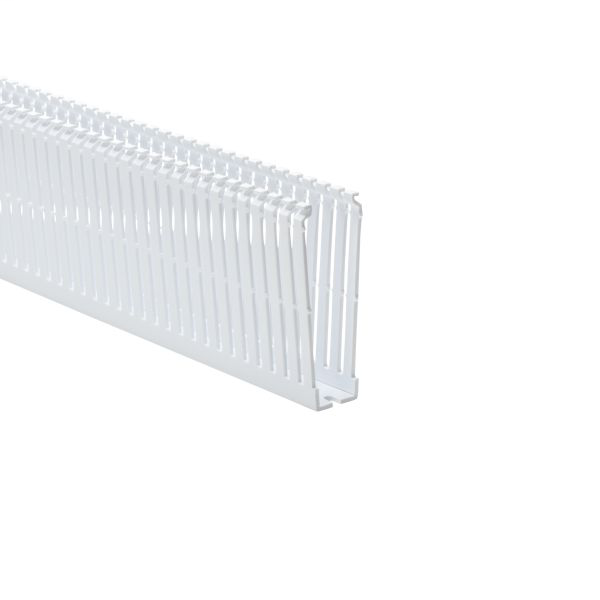

TYN 184-14003 HD Duct, 1" X 4", Non

Features

• Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.
• Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation.
• Mounting holes are uniform in size and are offered every 2 inches to accommodate compact designs and ease installation.
• Optional covers snap on and off easily, and are provided with a non-slip lining that insures the covers remain in place during vibration.

Specifications

• Color: White (WH)
• Material: Polyvinylchloride (PVC)
• UNSPSC Key: 39131704
• Height H (Imperial): 4.07 "
• Height H (Metric): 103.4 mm
• Length L (Imperial): 6.0 ft
• Length L (Metric): 1.83 m
• Width W (Imperial): 1.0 "
• Width W (Metric): 25.4 mm
• Flammability: Self-Extinguishing
• Operating Temperature: +122°F (+50°C)
• Package Quantity (Imperial): 30 ft
• Country of Origin: US

Certifications

• CE Certified: No
• REACH Compliant (Article 33): No
• CSA Certified: Yes
• ROHS Compliant: Yes
