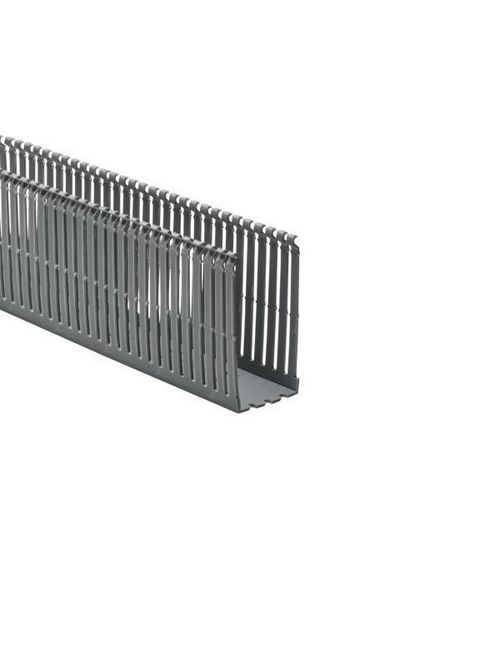

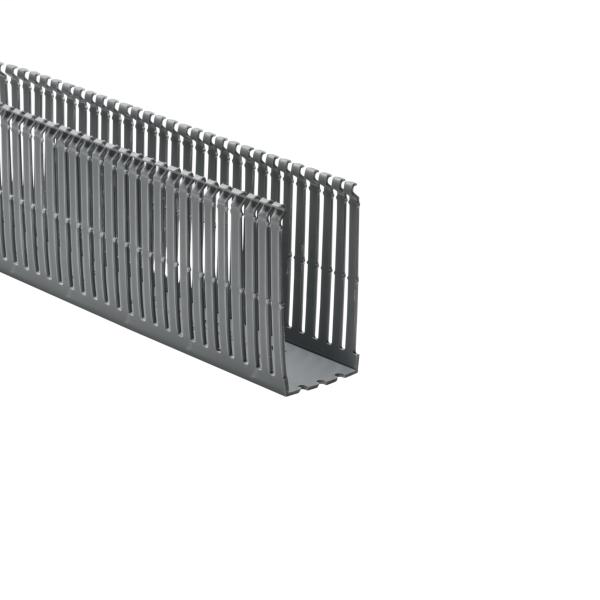

TYN 184-24004 HD Duct, 2" X 4", Non
$6.33/ea
Usually ships within 11 to 17 Days
ea
Adding...
Order in multiples of 120 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Tyton Hellermann
Mfg Catalog # 184-24004
North Coast Part # 1271305

Features

  • Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.
  • Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation.
  • Mounting holes are uniform in size to the solid and slotted wall duct, but are offered every 2 inches to accommodate compact designs and ease installation.

Specifications

  • Color: Gray (GY)
  • Material: Polyvinylchloride (PVC)
  • UNSPSC Key: 39131712
  • Height H (Imperial): 4.07 "
  • Height H (Metric): 103.4 mm
  • Length L (Imperial): 6.0 ft
  • Length L (Metric): 1.83 m
  • Width W (Imperial): 2.0 "
  • Width W (Metric): 50.8 mm
  • Flammability: Self-Extinguishing
  • Operating Temperature: +122°F (+50°C)
  • Package Quantity (Imperial): 120 ft
  • Country of Origin: US

Certifications

  • CE Certified: No
  • REACH Compliant (Article 33): No
  • CSA Certified: Yes
  • ROHS Compliant: Yes

Overview

UPC 08930629258
GTiN 00089306292586
Length 6.0 ft
Width 2.0 in
Size 6 FT
Color Gray
Operating Temperature 122 degrees F
Type SLHD2X4
Material PVC
Height 4.07 in
Standard UL Recognized (US)
Family Brand Name HellermannTyton
Flamability Class Self-Extinguishing
Sub Brand Wiring Duct
Country of Origin United States
