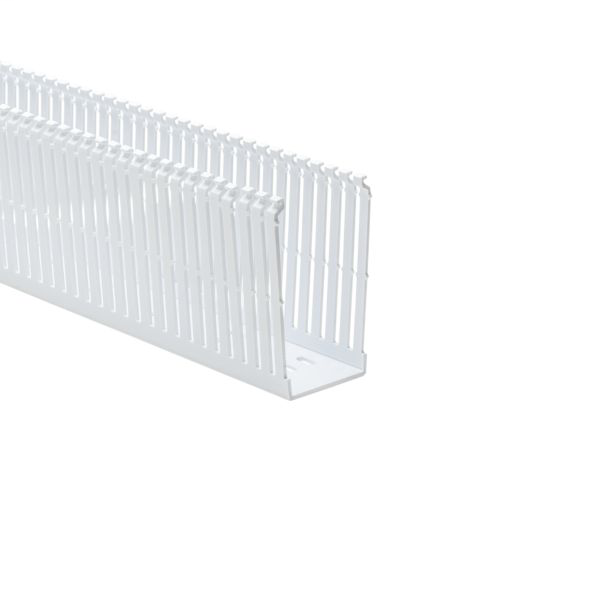

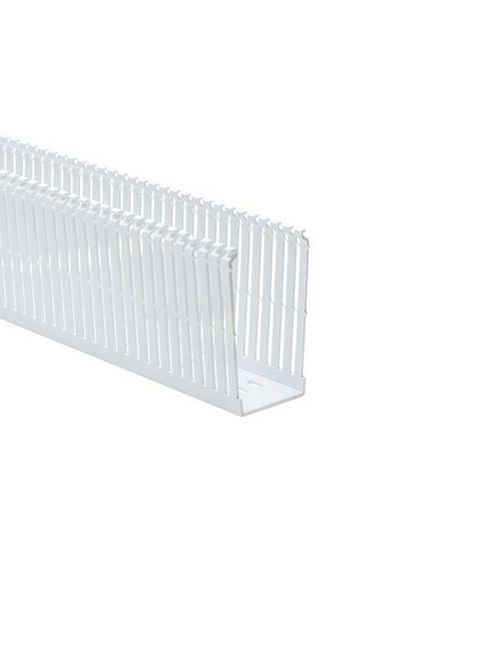

TYN 184-24006 HD Duct, 2" X 4", Non
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$7.14/ea
Usually ships within 11 to 17 Days
ea
Adding...
Order in multiples of 30 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Tyton Hellermann
Mfg Catalog # 184-24006
North Coast Part # 1272515

Features

  • Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.
  • Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation.
  • Mounting holes are uniform in size and are offered every 2 inches to accommodate compact designs and ease installation.
  • Optional covers snap on and off easily, and are provided with a non-slip lining that insures the covers remain in place during vibration.

Specifications

  • Color: White (WH)
  • Material: Polyvinylchloride (PVC)
  • UNSPSC Key: 39131704
  • Height H (Imperial): 4.07 "
  • Height H (Metric): 103.4 mm
  • Length L (Imperial): 6.0 ft
  • Length L (Metric): 1.83 m
  • Width W (Imperial): 2.0 "
  • Width W (Metric): 50.8 mm
  • Flammability: Self-Extinguishing
  • Operating Temperature: +122°F (+50°C)
  • Package Quantity (Imperial): 30 ft
  • Country of Origin: US

Certifications

  • CE Certified: No
  • REACH Compliant (Article 33): No
  • CSA Certified: Yes
  • ROHS Compliant: Yes

Overview

UPC 08930629265
Item Long Description HellermannTyton Pro-Duct High-Density, Slotted-Wall Wiring Duct features narrow fingers equaling a 2 to 1 finger ratio compared to standard slotted wiring duct. With the narrow fingers, compact designs and components are more easily accommodated.
GTiN 00089306292654
Length 6.0 ft
Width 2.0 in
Size 6
Color White
Operating Temperature 122 degrees F
Type SLHD2X4
Material Polyvinylchloride (PVC)
Height 4.07 in
Standard UL Recognized (US)
Family Brand Name HellermannTyton
Flamability Class Self-Extinguishing
Sub Brand Wiring Duct
Country of Origin USA
