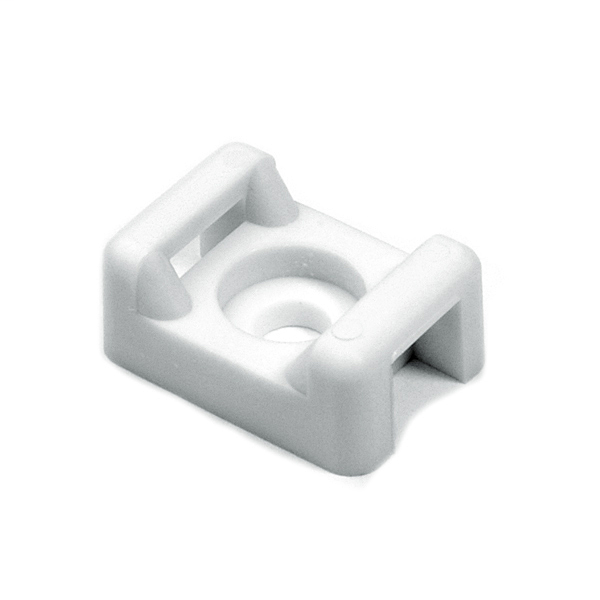

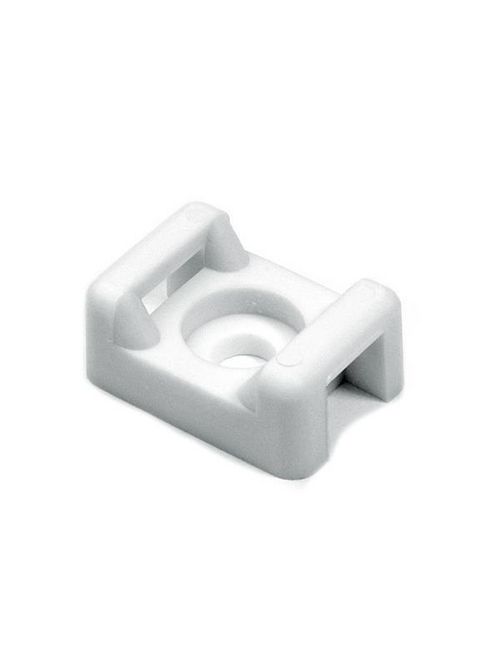

Hellermann Tyton CTM010C2 0.578 x 0.375 x 0.266 Inch White Polyamide 6.6 # 6 Screw Cable Tie Mounting Base
$0.18/ea
Usually ships within 11 to 17 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Tyton Hellermann
Mfg Catalog # CTM010C2
North Coast Part # 70997

Features

  • Designed for use with 18 through 50 pound cable ties to provide stability when securing bundles.
  • Secures with a single screw providing quick installation.

Specifications

  • Color: White (WH)
  • Material: Polyamide 6.6 (PA66)
  • UNSPSC Key: 39121717
  • Height H (Imperial): .27 "
  • Height H (Metric): 6.90 mm
  • Length L (Imperial): 0.58 "
  • Length L (Metric): 14.7 mm
  • Mounting Hole Diameter D (Imperial): 0.15 "
  • Mounting Hole Diameter D (Metric): 3.8 mm
  • Width W (Imperial): 0.37 "
  • Width W (Metric): 9.4 mm
  • Flammability: UL 94 V2
  • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
  • Package Quantity (Imperial): 100
  • Country of Origin: US

Certifications

  • CE Certified: Yes
  • REACH Compliant (Article 33): Yes
  • CSA Certified: No
  • ROHS Compliant: Yes

Overview

UPC 08930601202
GTiN 00089306012023
Length 0.58 in
Width 0.37 in
Color White
Operating Temperature -40 To 185 F
Type CTM0
Material Polyamide 6.6 (PA66)
Applications Designed specifically for holding heavier cable bundles.
Height .27 in
Cable Size 0.58 in
Standard UL Recognized (US And Canada)
Family Brand Name HellermannTyton
Flamability Class UL 94 V2
Mounting Hole Size 0.15 in
Sub Brand Cable Tie Mounts
Country of Origin USA
