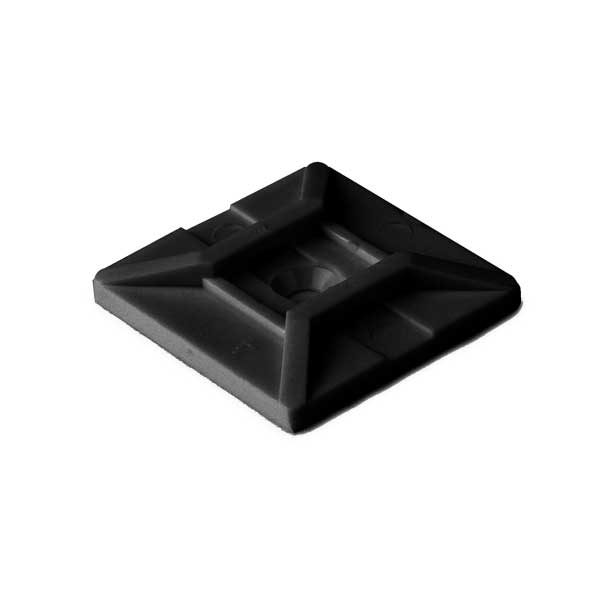

TYN MB4SHA0C2 Adhesive Bases, 1.12"
Product image thumbnail 0
Product image thumbnail 1
$0.85/ea
Usually ships within 11 to 17 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Tyton Hellermann
Mfg Catalog # MB4SHA0C2
North Coast Part # 1828575

Features

  • For use with HellermannTyton T18 - T50 cable ties to provide stability when securing bundles.
  • The rubber-based adhesive is an economical choice ideal for indoor applications, with a static load weight of 1.1 lb.
  • A predrilled hole extends mounting options and solutions.
  • Extended adhesive liner is easy to remove quickly.

Specifications

  • Color: Black (BK)
  • Material: Polyamide 6.6 (PA66)
  • UNSPSC Key: 39121717
  • Height H (Imperial): .23 "
  • Height H (Metric): 5.8 mm
  • Length L (Imperial): 1.12 "
  • Length L (Metric): 28.3 mm
  • Mounting Hole Diameter D (Imperial): 0.15 "
  • Mounting Hole Diameter D (Metric): 3.9 mm
  • Width W (Imperial): 1.12 "
  • Width W (Metric): 28.3 mm
  • Adhesive: Synthetic rubber with base of polyethylene foam
  • Flammability: UL 94 V2 (excluding adhesive)
  • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
  • Package Quantity (Imperial): 100
  • Country of Origin: US

Certifications

  • CE Certified: No
  • CSA Certified: No
  • ROHS Compliant: Yes

Overview

GTiN 00089306024804
Length 1.12 in
Width 1.12 in
Adhesive Type Synthetic Rubber With Base Of Polyethylene Foam
Color Black
Operating Temperature -40 To 185 F
Type MB4SHA
Material Polyamide
Applications HellermannTyton offers a wide variety of mounting bases suited for many applications. Mounting bases are used in conjunction with cable ties to stabilize and secure wiring bundles, both indoors and outdoors.
Height .23 in
Cable Size 1.12 in
Standard UL Recognized (US And Canada)
Family Brand Name HellermannTyton
Flamability Class UL 94 V2 (excluding Adhesive)
Mounting Hole Size 0.15 in
Sub Brand Cable Tie Mounts
Product UPC 08930602480
Country of Origin USA
