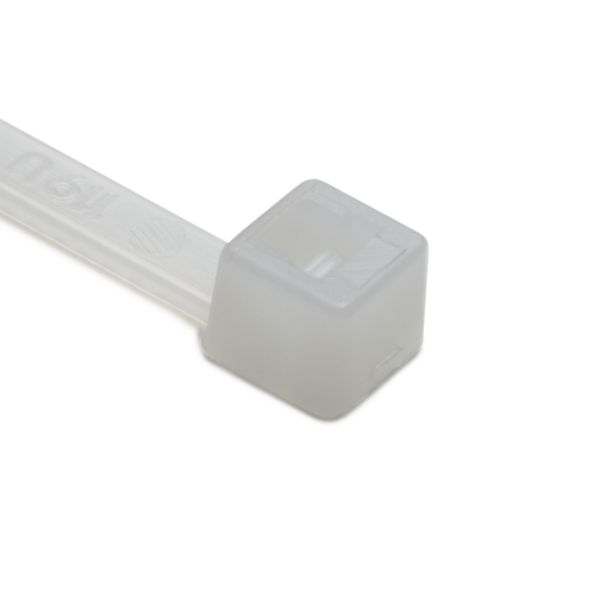

TYN T30R9C2 Std Tie, 5.8", 30lb, PA
$3.85/c (100 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Tyton Hellermann
Mfg Catalog # T30R9C2
North Coast Part # 671267

Features

  • Inside serrations allow for strong grip on cables and wire bundles.
  • Head design provides high tensile strength with very low insertion force.
  • Bent tail ensures a quick and simple installation.

Specifications

  • Color: Natural (NA)
  • Material: Polyamide 6.6 (PA66)
  • UNSPSC Key: 39121703
  • US MILSPEC: MS3367-5-9, Class 2;SAE-AS33671
  • Length L (Imperial): 6.0 "
  • Length L (Metric): 148.0 mm
  • Bundle Diameter Max. (Imperial): 1.38 "
  • Bundle Diameter Max. (Metric): 35.0 mm
  • Bundle Diameter Min. (Imperial): 0.06 "
  • Bundle Diameter Min. (Metric): 1.5 mm
  • Width W (Imperial): 0.14 "
  • Width W (Metric): 3.6 mm
  • Flammability: UL 94 V2
  • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
  • Tensile Strength Min. (Imperial): 30.0 lbs
  • Tensile Strength Min. (Metric): 135.0 N
  • Variant: Inside Serrated
  • Package Quantity (Imperial): 100
  • Country of Origin: US

Certifications

  • CE Certified: Yes
  • REACH Compliant (Article 33): Yes
  • CSA Certified: No
  • ROHS Compliant: Yes

Overview

UPC 08930607683
GTiN 00089306076834
Length 6.0 in
Width 0.14 in
Color Natural
Operating Temperature -40 To 85 C
Type T30R
Thickness 0.05 IN
Material Polyamide 6.6 (PA66)
Applications Used to bundle and secure wire and cable.
Standard UL Listed (US And Canada),UL Recognized (US And Canada)
Family Brand Name HellermannTyton
Flamability Class UL 94 V2
Tensile Strength 135.0 N
Bundle Diameter 1.38 IN
Sub Brand Cable Ties
Country of Origin USA
