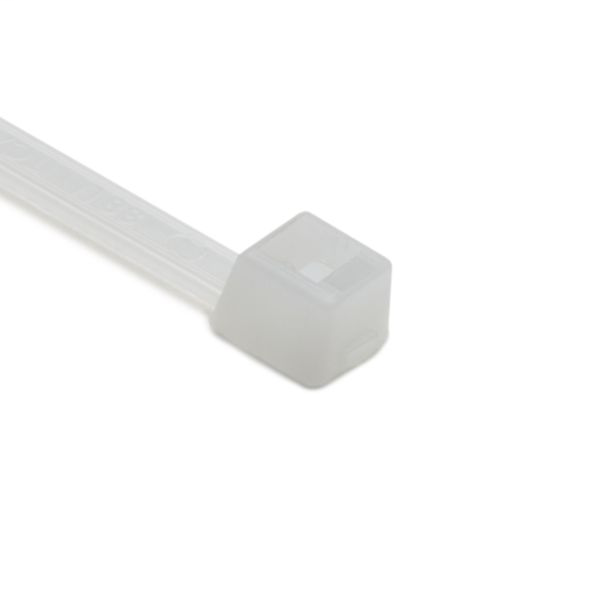

TYN T40R9M4 Cable Tie,40lb,8.27",Ø2
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Tyton Hellermann
Mfg Catalog # T40R9M4
North Coast Part # 1830285


  • Engineered and manufactured for maximum performance and quality.
  • Made from 100% high-quality plastic to ensure efficient recycling.
  • Inside serration for a strong grip onto bundles.
  • Easy application either manually or with a tensioning tool.
  • Bent tail allows for simpler insertion.


  • Color: Natural (NA)
  • Material: Polyamide 6.6 (PA66)
  • UNSPSC Key: 39121703
  • Length L (Imperial): 8.0 "
  • Length L (Metric): 210.82 mm
  • Bundle Diameter Max. (Imperial): 2.17 "
  • Bundle Diameter Max. (Metric): 55.0 mm
  • Bundle Diameter Min. (Imperial): 0.06 "
  • Bundle Diameter Min. (Metric): 1.5 mm
  • Width W (Imperial): 0.16 "
  • Width W (Metric): 4.0 mm
  • Flammability: UL 94 V2
  • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
  • Tensile Strength Min. (Imperial): 40.0 lbs
  • Tensile Strength Min. (Metric): 180.0 N
  • Variant: Inside Serrated
  • Package Quantity (Imperial): 1000
  • Country of Origin: US


  • CE Certified: Yes
  • CSA Certified: No
  • ROHS Compliant: Yes


UPC 08930608075
Item Long Description T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles. The head design guarantees high tensile strength and a low insertion force. The bent tail design allows quick and simple installations by hand. For high-volume applications, tensioning tools are available to ensure consistent and safe installation.
GTiN 00089306080756
Length 8.0 in
Width 0.16 in
Color Natural
Operating Temperature -40 To 85 C
Type T40R(U)
Material Polyamide 6.6 (PA66)
Applications Used to bundle and secure wire and cable.
Standard UL Listed (US And Canada),UL Recognized (US And Canada)
Family Brand Name HellermannTyton
Flamability Class UL 94 V2
Tensile Strength 180.0 N
Bundle Diameter 2.16 IN
Sub Brand Cable Ties
Country of Origin USA
