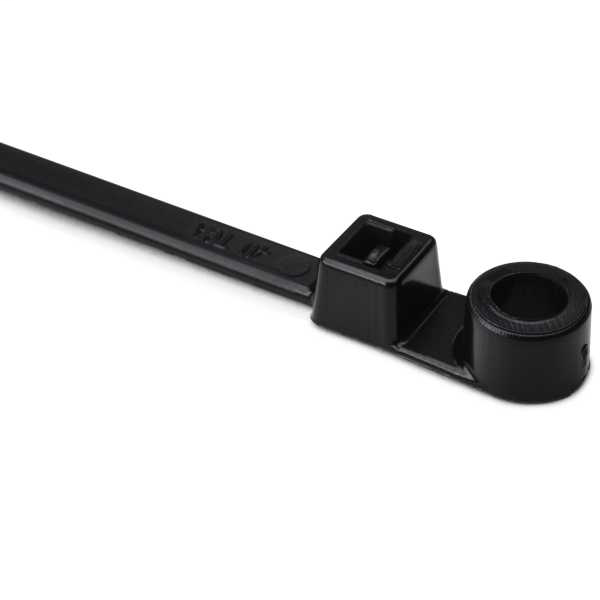

TYN T50MI0M4 Screw mnt Tie, 50lb, 1
$0.31/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Tyton Hellermann
Mfg Catalog # T50MI0M4
North Coast Part # 1832382

Features

  • Mount design secures firmly with any #10 screw.
  • Screw mount style creates low insertion and high extraction force.

Specifications

  • Color: Black (BK)
  • Material: Polyamide 6.6 (PA66)
  • UNSPSC Key: 39121703
  • Height H (Imperial): .23 "
  • Height H (Metric): 5.70 mm
  • Length L (Imperial): 12.4 "
  • Length L (Metric): 315.0 mm
  • Bundle Diameter Max. (Imperial): 3.45 "
  • Bundle Diameter Max. (Metric): 85.0 mm
  • Bundle Diameter Min. (Imperial): 0.06 "
  • Bundle Diameter Min. (Metric): 1.5 mm
  • Mounting Hole Diameter D (Imperial): 0.22 "
  • Mounting Hole Diameter D (Metric): 5.5 mm
  • Width W (Imperial): 0.19 "
  • Width W (Metric): 4.7 mm
  • Flammability: UL 94 V2
  • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
  • Tensile Strength Min. (Imperial): 50.0 lbs
  • Tensile Strength Min. (Metric): 225.0 N
  • Variant: Inside Serrated
  • Package Quantity (Imperial): 1000
  • Country of Origin: US

Certifications

  • CE Certified: No
  • CSA Certified: No
  • ROHS Compliant: Yes

Overview

UPC 08930622259
GTiN 00089306222590
Length 12.4 in
Width 0.19 in
Color Black
Operating Temperature -40 To 221 F
Type T50MI
Material Polyamide 6.6 (PA66)
Applications The 'T' range of cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt.
Height .23 in
Standard UL Recognized (US And Canada)
Family Brand Name HellermannTyton
Flamability Class UL 94 V2
Tensile Strength 225.0 N
Mounting Hole Size 0.22 in
Bundle Diameter 3.4 IN
Sub Brand Self-Affixing Cable Ties
Country of Origin USA
