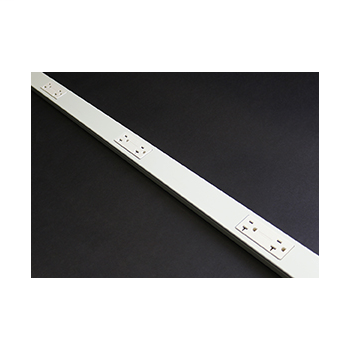

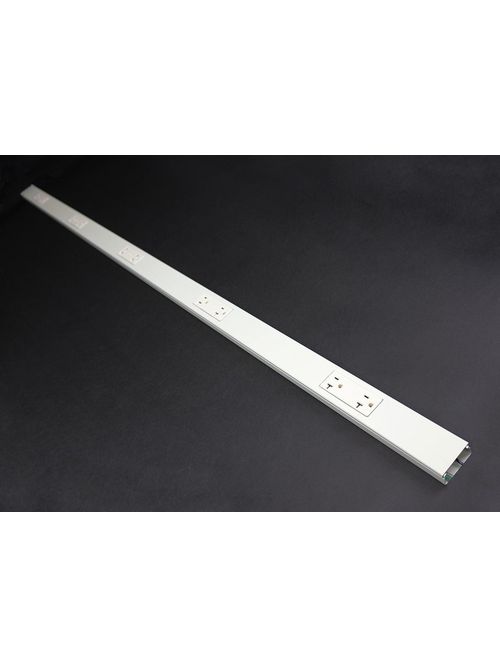

WM 24S6012GBX99IV PLGMD 20A 60IN. 1

Features

• Steel Raceway. Provides superior strength for any dry location installation with greater wire capacity than V2000.
• Ivory ScuffCoat finish. Durable scratch resistant finish.
• Removable cover. Allows easy access to wiring for changes or additions.
• Full range of fittings. Provides a complete wiring solution.
• Single-and-dual-gang boxes. Wire devices into the raceway system or protect a Plugmold® strip with a surge or GFCI device.
• Factory wired Plugmold® sections available in 3’, 5’, and 6’ lengths with 20A, 120V receptacles. Ideal for short runs requiring additional outlets in electrically busy areas.
• Single or alternating circuit. Meets virtually any circuit requirement.
• Choice of receptacle spacing. Center spacing between receptacles of 6”, 12” and 18”.
• Simplex receptacle. More spacing options available.
• Duplex receptacle. Aesthetically pleasing, functional 20A duplex for the 24S (2400) Series.
• Customization available. All products can be modified to accommodate virtually any application.

Specifications

• Country Of Origin: US
• Special Features: Steel Raceway, Ivory ScuffCoat finish, Removable cover, Full range of fittings, Single-and-dual-gang boxes, Factory wired in different lengths, Single or alternating circuit, Choice of receptacle spacing, simplex or duplex, customization available
• Type: Plugmold
• Certifications: CULUS,NAFTA,ROHS
• Amperage: 15A A
• Product Line: Wiremold
• Voltage: 125.0 V
• Enclosure Type: Steel
• Application Sector: Commercial
• Number of Receptacles: 5.0
• Environmental Conditions: Dry interior locations
• Standard: cULus Listed Base & Blank Cover: File E4376 Guide RJBT. Multioutlet Assemblies: File E15191 Guide PVGT. Fittings: File E41751 Guide RJPR. Base & Blank Cover& Plugmold Series w/Snapcoil Harness: Meets Article 386 of NEC. Meets Section 12-3032 of CEC. Plugmold Wired Sections: Meets Article 380 of NEC. Meets Section 12-3032 of CEC.

Certifications

• cULus Listed: E15191
• NAFTA Compliant
• RoHS Compliant
