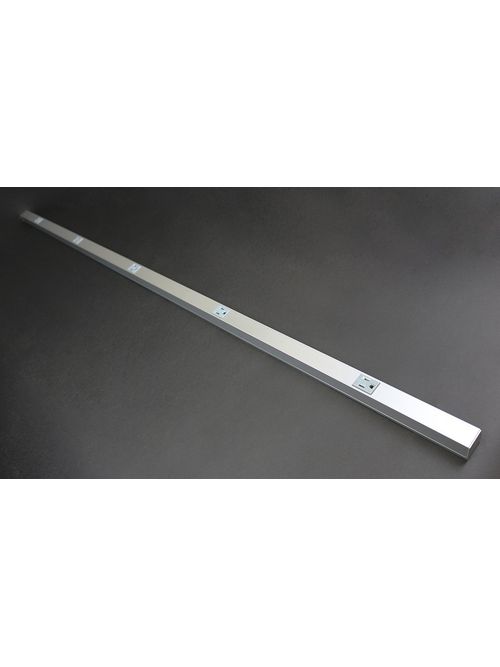

Wiremold AL20GB512 5 Foot x 1-7/16 x 1-1/8 Inch Satin Anodized Aluminum 1-Channel Raceway Multi-Outlet Strip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$96.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # AL20GB512
North Coast Part # 783145

Features

  • Attractive, tapered snap-together aluminum extrusions. Blend with any décor. Enables quick and easy circuit modifications or additions.
  • Satin anodized finish. Provides aesthetic upscale appearance and corrosion resistance.
  • Full range of fittings. Provides a complete wiring solution.
  • Factory wired in 3’, 5’, and 6’ lengths with flush 15A, 120V specification grade receptacles. Ideal for locations requiring a high concentration of devices.
  • Choice of standard 6'', 12'' and 18'' or custom receptacle spacings. Provides flexibility of outlet locations.
  • Choice of single circuit, alternating circuit or isolated ground receptacles. Meets any job requirement.
  • Customization available. All products can be modified to accommodate virtually any application.
  • This product meets the material restrictions of RoHS.

Specifications

  • Type: Plugmold
  • Country Of Origin: US
  • Certifications: ROHS,CULUS,NAFTA
  • Amperage: 15A A
  • Voltage: 120.0 V
  • Product Line: Wiremold
  • Enclosure Type: Aluminum
  • Application Sector: Commercial
  • Number of Receptacles: 5.0
  • Environmental Conditions: Dry interior locations
  • Special Features: Compact low profile design, Full range of fittings, one and two - gang device boxes.
  • Standard: cULus Listed Raceway: File E4376 Guide RJBT. Multioutlet Assemblies: File E15191 Guide PVGT. Fittings: File E41751 Guide RJPR. Base & Blank Cover: Meets Article 386 of NEC. Plugmold Strips: Meets Article 380 of NEC.

Certifications

  • NAFTA Compliant
  • cULus Listed: E15191
  • RoHS Compliant

Overview

UPC 78677604418
Item Long Description 5' Aluminum Plugmold Multioutlet System comprised of 5 spaced at 12'', GB
GTiN 00786776044188
Length 5 ft
Width 1.4375 in
Type Plugmold
Material Aluminum
Product Series AL2000 PM
Applications Commercial, Office, Residential
Height 3.125 in
Country of Origin USA
Capacity Single-Channel
Family Brand Name Wiremold
Certifications CULUS,NAFTA,ROHS
Buy American Compliant Yes
Enclosure Aluminum
Sub Brand Wiremold
Voltage 120 Volt
Amperage 15 Amp
