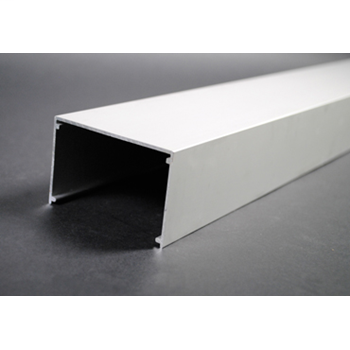

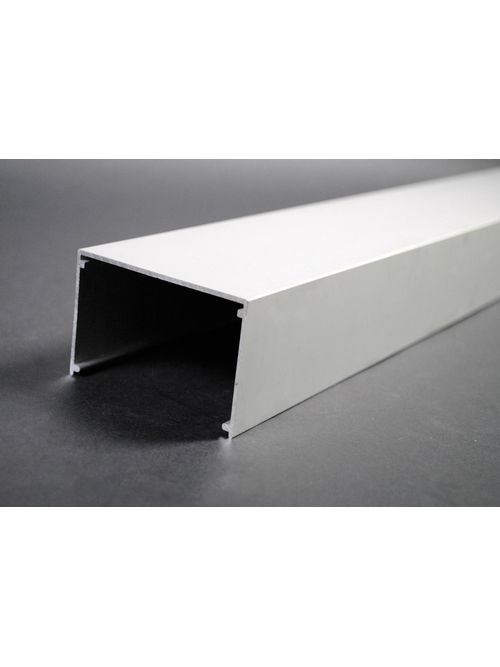

Wiremold AL3300B10 10 Foot x 2-7/8 x 1-7/8 Inch Satin Anodized Aluminum 1-Channel Raceway Base
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # AL3300B-10
North Coast Part # 1345121


  • This product meets the material restrictions of RoHS


  • Product Depth: 1.88 in
  • Type: Raceway
  • Voltage: 600.0 V
  • Product Height: 2.88 in
  • Product Width: 120.0 in
  • Application Sector: Commercial
  • Product Volume: 649.73 cu in
  • Standard: cULus Listed Surface Metal Raceway: File E4376: Guide RJBT/RJBT7
  • Product Weight: 23.99 lb
  • Special Features: Satin anodized Finish, Full line of fittings, compact size, Multiple Data connectivity options, UL5 and ADA compliant, UL and cUL listed raceway
  • Country Of Origin: MX
  • Certifications: NAFTA,ROHS,CULUS
  • Color: Silver
  • Product Line: Wiremold


  • cULus Listed: E4376
  • NAFTA Compliant
  • RoHS Compliant


UPC 78677618957
Item Long Description The Wiremold 3300 series aluminum raceway system meets the demands of today's commercial spaces, providing a compact, handsome and effective method of consolidating all power and communication cabling. In laboratories, healthcare facilities and upscale office locations, the divided aluminum raceway separates power and communication cabling and directs these services where required. The low-profile design can be installed as baseboard, surface mounted, or under laboratory reagent shelves. The two-piece raceway means wiring is always accessible and changes are easily accomplished at any time.
GTiN 00786776189575
Length 10 ft
Finish Satin Anodized
Size 10 ft L
Type Single-Channel
Material Aluminum
Product Series AL3300
Applications Commercial, Office
Country of Origin Mexico
Capacity Single-Channel
Family Brand Name Wiremold
Certifications CULUS,NAFTA,ROHS
Outside Diameter 2-7/8 x 1-7/8 in
Blade Dimensions 2-7/8 x 1-7/8 x 0.06 in
Jacket Color Satin Anodized
Sub Brand Wiremold
Voltage 600 Volt
Width 120.0 in
Color Silver
Depth 1.88 in
Height 2.88 in
Weight 23.99 lb
