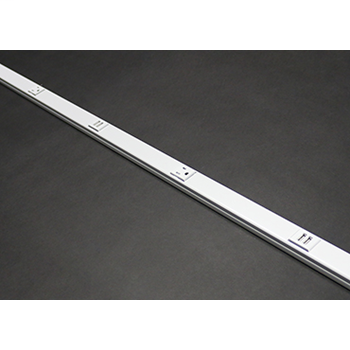

WM G20GB509TRUSBA USB PLUGMOLD 5FT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$197.57/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # G20GB509TRUSBA
North Coast Part # 1347311

Features

  • USB charging. Dual-port charging modules share 2.4 amps of charging capacity and can charge multiple phones, tablets or other mobile devices at the same time.
  • Multiple colors and finishes. Painted finishes of black, gray, ivory, and white, as well as anodized aluminum and stainless steel versions integrate easily with any room decor.
  • Compact design. Low-profile design installs in tight locations while offering multiple power and USB charging connections. Receptacle spacing accommodates bulky AC adapters.
  • Tamper-resistant receptacles. Prevents the insertion of foreign objects into receptacles reducing the risk of shocks or electrocution. Meets 2014 NEC section 406 requirements.

Specifications

  • Country Of Origin: US
  • Type: Plugmold
  • Certifications: ROHS,NAFTA,CULUS
  • Voltage: 125.0 V
  • Enclosure Type: Steel
  • Product Line: Wiremold
  • Application Sector: Commercial
  • Number of Receptacles: 6.0
  • Amperage: 20 Amp Feed Through A
  • Frequency Rating: 60 Htz Hz
  • Environmental Conditions: Dry interior locations.
  • Standard: cULus Listed Multioutlet Assembly: File E15191 Guide PVGT
  • Special Features: Provides USB charging for up to 6 mobile devices as well as 3 power devices

Certifications

  • NAFTA Compliant
  • cULus Listed: E15191
  • RoHS Compliant

Overview

UPC 78677618444
Item Long Description Available in 5' (1.5m) length with 9'' spacing. 15A tamper-resistant receptacles. 3-wire, #12 THHN (1 hot, 1 neutral and insulated ground conductor). .040'' (1.0 mm) steel housing. Packed two per carton. Each unit supplied with one (1) Coupling and two (2) Blank End Fittings. USB is 2.4 Amps (shared between two ports) 5VDC. Please note the charging load on one module will not affect the charging performance of the other USB modules in the product.
GTiN 00786776184440
Length 60 in
Width 1.28125 in
Type Plugmold
Material Steel
Product Series 20GB509TRUSB
Applications Commercial, Office, Hospitality, Education and Transportation
Height 3/4 in
Country of Origin USA
Family Brand Name Wiremold
Buy American Compliant Yes
Enclosure Steel
Sub Brand Wiremold
Voltage 125 Volt
Certifications CULUS,NAFTA,ROHS
Amperage 20 Amp
