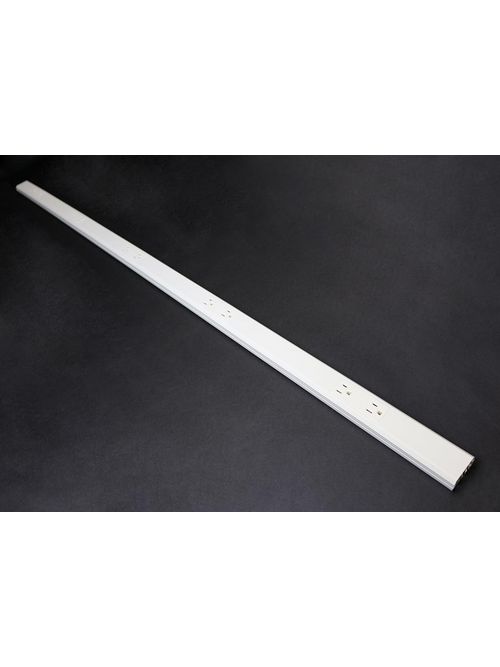

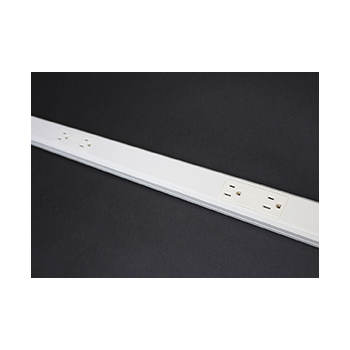

WM NM20GB512 PLGMD SGL CRCT 12IN. O
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$77.61/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # NM20GB512
North Coast Part # 490752

Features

  • Nonmetallic, lightweight with snap-on cover. Speeds installation: provides easy access to wiring for changes or additions.
  • Tapered profile design with textured ivory finish. Blends with surroundings in office, display space, dorm rooms and residential locations.
  • Full range of fittings. Facilitates easy installation of wiring for whatever the job: communication workstation outlets, receptacles, switches and more. Over lapping fittings permit neat butting to raceway.
  • Factory wired harness available with duplex receptacles on multiple spacings. Maximum power distribution to the point of use.
  • NEMA heavy duty duplex receptacles independently tested to Fed. Spec. WC596G performance criteria. Enhanced product quality ensures dependable performance.
  • Snapicoil harnesses of prewired receptacles in 48’ and 50’. Eliminates the need for multiple splicing, speeding up installations on long runs.
  • Snapicoil harnesses offer a choice of receptacle spacing. Center spacing between receptacles of 12'', 18'' and 30''.
  • Field replaceable surge module. No need to remove the raceway cover to splice in a replacement receptacle. Field changes and maintenance are quick and easy.
  • Customization available. All products can be modified to accommodate virtually any application.

Specifications

  • Certifications: ROHS,NAFTA,CULUS
  • Country Of Origin: US
  • Product Line: Wiremold
  • Type: Plugmold
  • Amperage: 15A A
  • Voltage: 120.0 V
  • Application Sector: Commercial
  • Enclosure Type: Non-Metallic
  • Number of Receptacles: 5.0
  • Environmental Conditions: Dry interior locations
  • Standard: cULus Listed Base & Blank Cover: File E90378 Guide RJBT. Multioutlet Assemblies: File E15191 Guide PVGT. Fittings: File E90377 GuideRJPR. Base & Blank Cover & Plugmold Series w/Snapcoil Harness: Meets Article 386 of NEC. Meets Section 12-3032 of CEC. Plugmold Wired Sections: Meets Article 380 of NEC. Meets Section 12-3032 of CEC.
  • Special Features: Compact low profile design, Full range of fittings, one and two - gang device boxes.

Certifications

  • NAFTA Compliant
  • cULus Listed: E15191
  • RoHS Compliant

Overview

GTiN 00786776519990
Length 5 ft
Type Plugmold
Material Plastic
Product Series NM2000
Applications Commercial, Office, Residential
Country of Origin USA
Capacity Single-Channel
Family Brand Name Wiremold
Certifications CULUS,NAFTA,ROHS
Buy American Compliant Yes
Material Type Non-Metallic
Enclosure Plastic
Sub Brand Wiremold
Product UPC 78677651999
Voltage 120 Volt
Amperage 15 Amp
